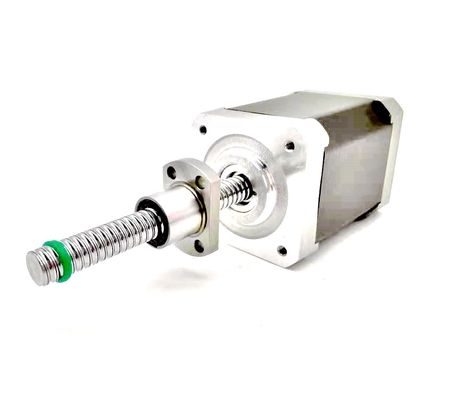

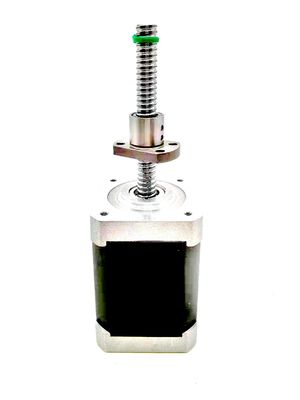

NEMA23 Linear Hybrid Stepper Motor 57mm High Torque 1.8° With Screw Rod

NEMA23 Linear Hybrid Stepper Motor 57mm High Torque 1.8° With Screw Rod
NEMA23 Linear Hybrid Stepper Motor 57mm High Torque 1.8° With Screw Rod NEMA23 Linear Hybrid Stepper Motor 57mm High Torque 1.8° With Screw Rod

Large Image :  NEMA23 Linear Hybrid Stepper Motor 57mm High Torque 1.8° With Screw Rod

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 57BYGH-TR
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $50~80/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000Units/month
Contact Now Chat Now

NEMA23 Linear Hybrid Stepper Motor 57mm High Torque 1.8° With Screw Rod

Description
Type: Linear Stepper Motor Rated Voltage: 5-24V
Screw: TR8 - TR10 Leads: 4
Insulation Resistance: 100MΩ (MIN.) Dielectric Strength: 600VAC 1mA 1S
Highlight:

NEMA23 hybrid stepping motor

,

Lead Screw hybrid stepping motor

,

Screw Rod hybrid servo motor

NEMA23 Linear Lead Screw Hybrid Stepper Motor 57mm High Torque 1.8° Stepping Motor With Screw Rod

This is a 57mm size (NEMA23) hybrid stepper motor with lead screw and nut.

Screw lead is related to motor’s linear speed, and nut’s thrust.

If customers require higher speed on the nut, we can replace with longer screw lead. But motor’s thrust/pushing force will be lower.

It depends on customers want more thrust or higher speed.

Motor’s height is 33mm, and it’s related to motor’s torque, with bigger height, motor’s torque is higher.

Please confirm your required linear speed and thrust, before you order motor samples, we will recommend suitable motors with suitable lead screw type based on your requirement.

Electrical Specification of nema 23 linear stepper motor:



Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

 Holding Torque # of Leads Detent Torque Rotor Inertia Mass
  ( °) (L)mm A Ω mH N.m No. g.cm g.cm Kg
57BYGH41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
57BYGH51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
57BYGH56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
57BYGH64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
57BYGH76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1
57BYGH82-3004 1.8 82 3 1.2 4 2.1 4 1000 600 1.2
57BYGH100-4204 1.8 100 4.2 0.75 3 3 4 1100 700 1.3
57BYGH112-4204 1.8 112 4.2 0.9 3.8 3.1 4 1200 800 1.4





Screw rod Specification of lead screw:



Screw Diameter(mm) Screw Lead(mm) Screw Pitch(mm) Travel per step(mm) Screw Diameter(mm) Screw Lead(mm) Screw Pitch(mm) Travel per step(mm)
Tr8 1 1 0.005 Tr8 10 2 0.05
  2 2 0.01   12 2 0.06
  3 1.5 0.015   14 2 0.07
  4 2 0.02
  8 2 0.04
Tr10 2 2 0.01 Tr12 2 2 0.01
  3 1.5 0.015   3 3 0.015
  4 2 0.02   8 2 0.04
  8 2 0.04   10 2 0.05
  10 2 0.05
  12 2 0.06



Tag:

Hybrid Stepper Motor,

Lead Screw Motor,

Screw Stepper Motor
