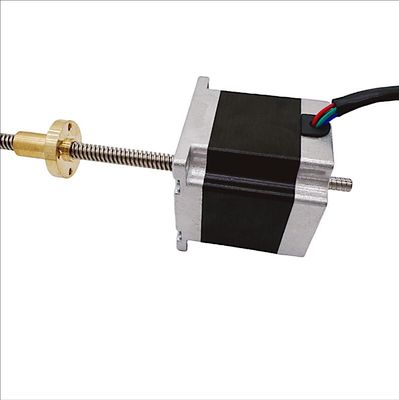

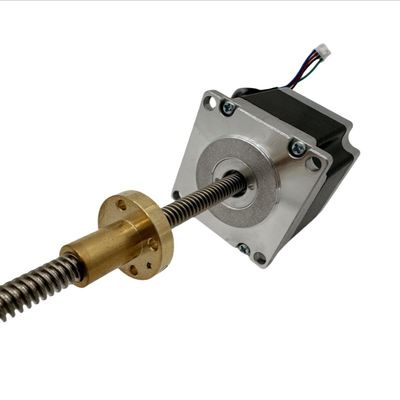

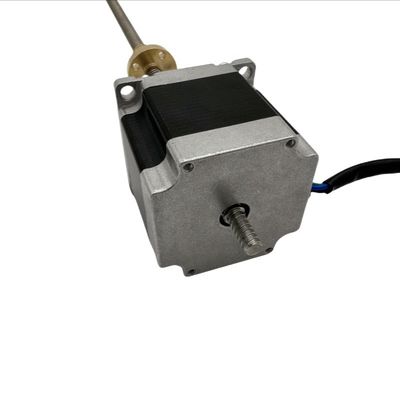

1.8° Step Angle Nema14 Stepper Motor 35mm With 0.6096mm Pitch For CNC Machining

1.8° Step Angle Nema14 Stepper Motor 35mm With 0.6096mm Pitch For CNC Machining
1.8° Step Angle Nema14 Stepper Motor 35mm With 0.6096mm Pitch For CNC Machining 1.8° Step Angle Nema14 Stepper Motor 35mm With 0.6096mm Pitch For CNC Machining 1.8° Step Angle Nema14 Stepper Motor 35mm With 0.6096mm Pitch For CNC Machining

Large Image :  1.8° Step Angle Nema14 Stepper Motor 35mm With 0.6096mm Pitch For CNC Machining

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 35BYGH-TR
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $45~65/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000Units/month
Contact Now Chat Now

1.8° Step Angle Nema14 Stepper Motor 35mm With 0.6096mm Pitch For CNC Machining

Description
Type: Linear Stepper Motor Rated Voltage: 5-24V
Screw: TR6 - TR8 Leads: 4
Step Angle: 1.8° Insulation Resistance: 100MΩ (MIN.)
Dielectric Strength: 600VAC 1mA 1S
Highlight:

CNC Machining Nema14 Stepper Motor

,

0.6096mm Pitch Nema14 Stepper Motor

,

CNC Machining lead screw servo motor

1.8° Step Angle NEMA14 – 35mm Linear Stepper with 0.6096mm Pitch Lead Screw for CNC Micro-Machining

The 1.8° Step Angle NEMA14 linear stepper motor, measuring 35mm, is engineered to excel in CNC micro-machining applications, paired with a high-precision 0.6096mm pitch lead screw. Its hybrid design merges the reliability of stepper technology with linear motion efficiency, ensuring ultra-fine positioning control critical for intricate machining tasks—from engraving tiny components to cutting precision parts.​
With a 1.8° step angle, it delivers exceptional angular resolution, translated by the 0.6096mm pitch lead screw into smooth, incremental linear movement—ideal for maintaining tight tolerances in micro-machining setups. The compact 35mm frame fits seamlessly into space-constrained CNC systems, while its robust construction ensures consistent performance under the demands of continuous operation.​
Whether used in small-scale CNC routers, micro-lathes, or precision cutting equipment, this motor balances power and precision, making it a go-to choice for manufacturers and hobbyists seeking reliable linear motion in CNC micro-machining workflows.​

Parameter sheet:

Motor type Hybrid stepper motor
Motor size 35mm (NEMA14)
Step angle 1.8°/step
Step length 0.003mm/step
Phase No. 2 phases
Phase resistance 1.8Ω±10%
Lead screw type P0.6096*1N
Lead scew length 55mm (Adjustable)

Screw rod Specification of lead screw:



Lead screw diameter(mm) Screw Lead (mm) Screw pitch(mm) Travel per step(mm) Lead Screw Diameter(mm) Screw Lead(mm) Screw Pitch(mm) Travel per step(mm)

TR8



 1 1 0.005

Tr6

2

1

0.01
2 2 0.1



4

1

0.02
3 1.5 0.015



6

1

0.03
4 2 0.02



12

2

0.06
8 2 0.04








10 2 0.05
12 2 0.06




Tag:

Hybrid Stepper Motor,

Lead Screw Motor,

Screw Stepper Motor
