35BY412 PM Stepper Motor For 3D Printers And CNC 24V 7.5° Step 35mm X 15mm

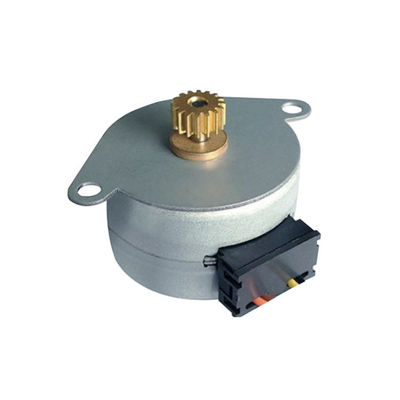

Large Image : 35BY412 PM Stepper Motor For 3D Printers And CNC 24V 7.5° Step 35mm X 15mm

Product Details:

Place of Origin:	China
Brand Name:	WEIGU
Certification:	RoHS
Model Number:	35BY412M

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Price:	$2~4/unit
Packaging Details:	Standard export package, or can be customized
Delivery Time:	7-30 work days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100000Units/month

Contact Now Chat Now

35BY412 PM Stepper Motor For 3D Printers And CNC 24V 7.5° Step 35mm X 15mm

Description

Type:	Permanent Magnet Stepper Motor	Rated Voltage:	5-24V
Step Angle:	7.5°	Thick:	15mm
Insulation Resistance:	100MΩ (MIN.)	Dielectric Strength:	600VAC 1mA 1S
Highlight:	35BY412 PM Stepper Motor , 3D Printers PM Stepper Motor , 35BY412 Geared Stepper Motor

35BY412 Stepper Motor for 3D Printers & CNC 24V 7.5° Step 35mm x 15mm Size

The 35BY412 stepper motor delivers unmatched reliability for 3D printers and CNC machinery. Operating at 24V with a 7.5° step angle, it ensures smooth, accurate motion—critical for detailed prints and precise cuts.

Crafted to exacting standards, its compact 35mm diameter and 15mm thickness make it perfect for space-constrained setups, without sacrificing performance. All metal components undergo eco-friendly plating, enhancing durability to withstand the rigors of continuous industrial use.

Beyond 3D printers and CNC systems, this motor excels in applications demanding consistent, fine-tuned movement. Need customization? Our 10+ years of micro-motor expertise let us adapt inputs (like FPC cables or PCBs) and pair it with tailored drive systems to fit your needs.

Trust the 35BY412 to power precision in every project.

Specifications

Product Name	35 mm permanent magnet stepper motor
Model	35BY412M
Rated Voltage	24V DC
Coil Resistance	10.5Ω ± 7%/phase 25℃
No. Of phase	2 Phases
Step Angle	7.5 degree
Pull-in frequency	800Hz
Pull frequency	1000 Hz
Pull out torque	40mN.m(800Hz)
Holding torque	60mN.m
Self-positioning torque	8mN.m(REF)
inductance	8.5mH/phase(REF)
Excitation method	2-2phase
Insulation withstand voltage	No breakdown or flying fox
Insulation dielectric strength	Above 100MΩ DC500V
noise	No abnormal sound

Mechanical Dimension:MM
