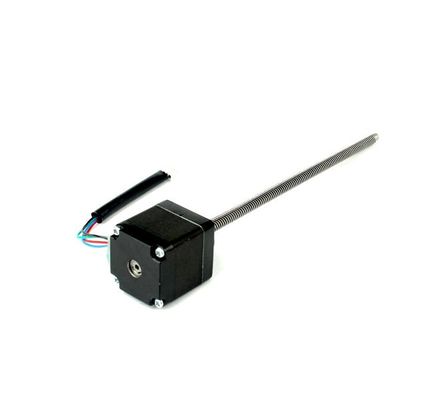

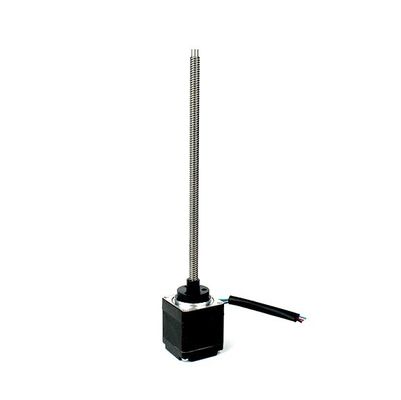

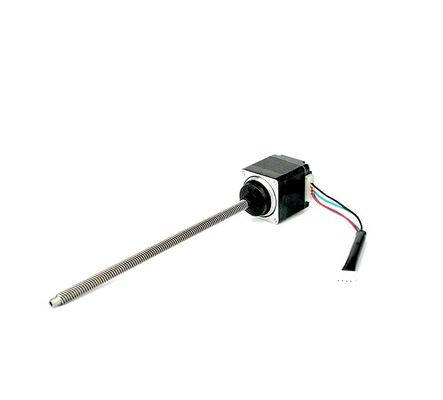

Quiet Operation Nema 17 Lead Screw With POM Brass Nut Low Friction For 3D Printers And CNC Machines

Quiet Operation Nema 17 Lead Screw With POM Brass Nut Low Friction For 3D Printers And CNC Machines
Quiet Operation Nema 17 Lead Screw With POM Brass Nut Low Friction For 3D Printers And CNC Machines Quiet Operation Nema 17 Lead Screw With POM Brass Nut Low Friction For 3D Printers And CNC Machines Quiet Operation Nema 17 Lead Screw With POM Brass Nut Low Friction For 3D Printers And CNC Machines

Large Image :  Quiet Operation Nema 17 Lead Screw With POM Brass Nut Low Friction For 3D Printers And CNC Machines

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 42BYGH40
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: $20~50/unit
Packaging Details: Standard export package in corrugated carton (Mass production).
Delivery Time: 15-30 work days
Payment Terms: T/T,D/P,Western Union,MoneyGram
Supply Ability: 100000 Units/year
Contact Now Chat Now

Quiet Operation Nema 17 Lead Screw With POM Brass Nut Low Friction For 3D Printers And CNC Machines

Description
Type: Hybrid Linear Stepper Motor Step Angle: 1.8°
Shaft Type: Tr8 Lead Screw Pitch: 2mm
Insulation Resistance: 100MΩ (MIN.) Dielectric Strength: 600VAC 1mA 1S
Highlight:

Quiet Operation Nema 17 Lead Screw

,

3D Printers Nema 17 Lead Screw

,

Low Friction 42mm Stepper Motor

NEMA17 Linear Lead Screw Stepper - 42mm Hybrid Motor with POM Brass Nut Quiet Operation & Low Friction

Our 42mm NEMA 17 hybrid linear stepper motor is built for precise linear movement, with a sturdy TR8 trapezoidal screw (8mm diameter) that works great in many setups—like 3D printers, CNC machines, or automated tools.​
The TR8 screw comes in different pitches and leads, so you can pick the right one for your needs. Choose a finer lead for quick, short moves, or a coarser one for more thrust with heavy loads.​
We can make the lead screw any length you want—from a small 50mm to over 500mm—so it fits your space perfectly.​
You also get to choose between POM nuts (quiet, low-friction, good for lab gear or home projects) and brass nuts (tough, heat-resistant, ideal for industrial use). Both fit the TR8 screw tightly, keeping movement accurate.​
It works with common controllers like Arduino and GRBL, and its 42mm size is just right for both DIY projects and industrial setups.​
Pick your lead, length, and nut—get a motor that fits your project perfectly.

Design Layout (Unit:mm)

Quiet Operation Nema 17 Lead Screw With POM Brass Nut Low Friction For 3D Printers And CNC Machines 0

Parameter sheet:

Model No. 42BYGH40
Motor type Linear hybrid stepper motor
Motor size 42mm * 40mm (Width*height)
Lead screw type trapezoidal screw
Lead screw length Adjustable
Nut material POM / brass



Electrical Specification:





Model No.
Step Angle
Motor Length
Current/Phase
Resistance/Phase
Inductance/Phase
Holding Torque
Number of leads
Detent Torque
Rotor Inertia
(°)
(mm)
(A)
(Ω)
(mH)
(kg.cm)
(No.)
(g.cm)
g.cm2
42BYGH34-1334
0.9
34
1.33
2.1
2.5
2.2
4
120
34
42BYGH34-0406
0.9
34
0.4
24
15
1.6
6
120
34
42BYGH34-0956
0.9
34
0.95
4.2
2.5
1.6
6
120
34
42BYGH40-0406
0.9
40
0.4
30
30
2.6
6
150
54
42BYGH40-1684
0.9
40
1.68
1.65
3.2
3.6
4
150
54
42BYGH40-1206
0.9
40
1.2
3
2.7
2.9
6
150
54
42BYGH48-0406
0.9
48
0.4
30
25
3.1
6
260
68
42BYGH48-1684
0.9
48
1.68
1.65
2.8
4.4
4
260
68
42BYGH48-1206
0.9
48
1.2
3.3
2.8
3.17
6
260
68



Screw rod Specification:

Lead screw diameter Screw Lead (mm) Screw pitch(mm) Travel per step(mm)

TR8

(8mm)

 1 1 0.005
2 2 0.1
3 1.5 0.015
4 2 0.02
8 2 0.04
10 2 0.05
12 2 0.06
14 2 0.07
