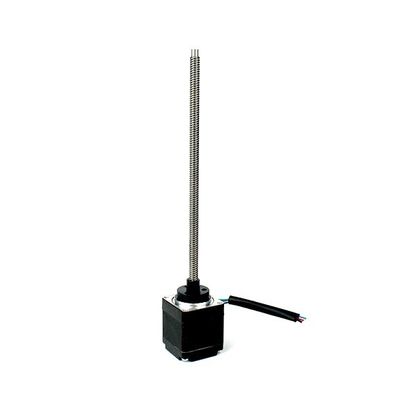

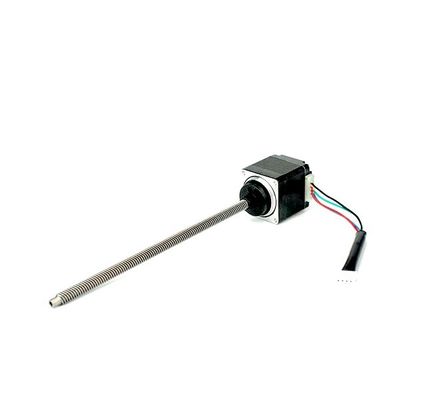

NEMA17 42mm 1.8° Linear Stepper Motor Lead Screw Stepper Low Friction Quiet For Automated Tools

NEMA17 42mm 1.8° Linear Stepper Motor Lead Screw Stepper Low Friction Quiet For Automated Tools
NEMA17 42mm 1.8° Linear Stepper Motor Lead Screw Stepper Low Friction Quiet For Automated Tools NEMA17 42mm 1.8° Linear Stepper Motor Lead Screw Stepper Low Friction Quiet For Automated Tools

Large Image :  NEMA17 42mm 1.8° Linear Stepper Motor Lead Screw Stepper Low Friction Quiet For Automated Tools

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 42BYGH
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: $20~50/unit
Packaging Details: Standard export package in corrugated carton (Mass production).
Delivery Time: 15-30 work days
Payment Terms: T/T,D/P,Western Union,MoneyGram
Supply Ability: 100000 Units/year
Contact Now Chat Now

NEMA17 42mm 1.8° Linear Stepper Motor Lead Screw Stepper Low Friction Quiet For Automated Tools

Description
Type: Hybrid Linear Stepper Motor Step Angle: 1.8°
Shaft Type: Tr5,Tr6,Tr8,Tr10 Motor Thickness: 34/40/48mm
Insulation Resistance: 100MΩ (MIN.) Dielectric Strength: 600VAC 1mA 1S
Highlight:

Automated Tools Linear Stepper Motor

,

Low Friction Linear Stepper Motor

,

Automated Tools Lead Screw Motor

NEMA17 42mm 1.8° Linear Lead Screw Stepper - Hybrid Motor Low Friction, Quiet for Automated Tools

Engineered specifically for automated tools, this high-performance hybrid stepper motor stands out with its low friction and ultra-quiet operation, making it a top choice for noise-sensitive work environments. The 1.8° step angle ensures exceptional precision in linear motion, allowing for accurate positioning even in intricate automated tasks.​
With a 42mm frame, it strikes the perfect balance between compact size and robust performance, easily fitting into tight setups without compromising on power. Whether used in assembly line robots, automated material handling systems, or precision testing equipment, it delivers smooth, consistent movement to streamline workflows.​
Its linear lead screw design further enhances efficiency, reducing energy loss and ensuring reliable operation over extended periods. For automated tools that demand both accuracy and quietness, this motor is an ideal solution to elevate productivity and performance.

Design Layout (Unit:mm)

NEMA17 42mm 1.8° Linear Stepper Motor Lead Screw Stepper Low Friction Quiet For Automated Tools 0



Electrical Specification:





Model No.
Step Angle
Motor Length
Current/Phase
Resistance/Phase
Inductance/Phase
Holding Torque
Number of leads
Detent Torque
Rotor Inertia
(°)
(mm)
(A)
(Ω)
(mH)
(kg.cm)
(No.)
(g.cm)
g.cm2
42BYGH34-1334
0.9
34
1.33
2.1
2.5
2.2
4
120
34
42BYGH34-0406
0.9
34
0.4
24
15
1.6
6
120
34
42BYGH34-0956
0.9
34
0.95
4.2
2.5
1.6
6
120
34
42BYGH40-0406
0.9
40
0.4
30
30
2.6
6
150
54
42BYGH40-1684
0.9
40
1.68
1.65
3.2
3.6
4
150
54
42BYGH40-1206
0.9
40
1.2
3
2.7
2.9
6
150
54
42BYGH48-0406
0.9
48
0.4
30
25
3.1
6
260
68
42BYGH48-1684
0.9
48
1.68
1.65
2.8
4.4
4
260
68
42BYGH48-1206
0.9
48
1.2
3.3
2.8
3.17
6
260
68



Screw rod Specification:



Screw Diameter(mm)

Screw Lead(mm)

Screw Pitch(mm)

Travel per step(mm)

Screw Diameter(mm)

Screw Lead(mm)

Screw Pitch(mm)

Travel per step(mm)
Tr5 1 1 0.005 Tr8 8 2 0.04
  2 1 0.01   10 2 0.05
Tr6 2 1 0.01   12 2 0.06
  4 1 0.02   14 2 0.07
  6 1 0.03 Tr10 2 2 0.01
  12 2 0.06   3 1.5 0.015
Tr8 1 1 0.005   4 2 0.02
  2 2 0.01   8 2 0.04
  3 1.5 0.015   10 2 0.05
  4 2 0.02   12 2 0.06
