NEMA23 57mm Hybrid Screw Stepper Motor 24V 1.8° 4 Leads Through Type Stepping Motor

NEMA23 57mm Hybrid Screw Stepper Motor 24V 1.8° 4 Leads Through Type Stepping Motor
NEMA23 57mm Hybrid Screw Stepper Motor 24V 1.8° 4 Leads Through Type Stepping Motor NEMA23 57mm Hybrid Screw Stepper Motor 24V 1.8° 4 Leads Through Type Stepping Motor NEMA23 57mm Hybrid Screw Stepper Motor 24V 1.8° 4 Leads Through Type Stepping Motor NEMA23 57mm Hybrid Screw Stepper Motor 24V 1.8° 4 Leads Through Type Stepping Motor

Large Image :  NEMA23 57mm Hybrid Screw Stepper Motor 24V 1.8° 4 Leads Through Type Stepping Motor

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 57BYGH-TR
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $50~80/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000Units/month
Contact Now Chat Now

NEMA23 57mm Hybrid Screw Stepper Motor 24V 1.8° 4 Leads Through Type Stepping Motor

Description
Type: Linear Stepper Motor Rated Voltage: 5-24V
Screw: TR8 - TR10 Leads: 4
Insulation Resistance: 100MΩ (MIN.) Dielectric Strength: 600VAC 1mA 1S
Highlight:

NEMA23 Hybrid Screw Stepper Motor

,

4 Leads Screw Stepper Motor

,

4 Leads Through Type Stepper Motor

NEMA23 57mm Hybrid Linear Lead Screw Stepper Motor 1.8° Through Type Stepping Motor

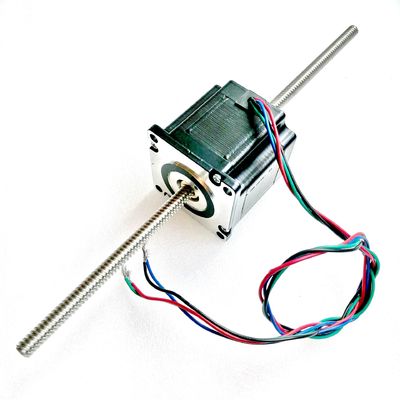

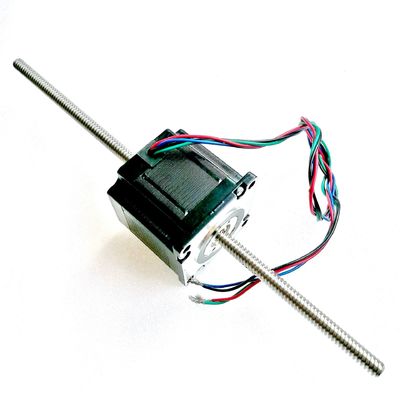

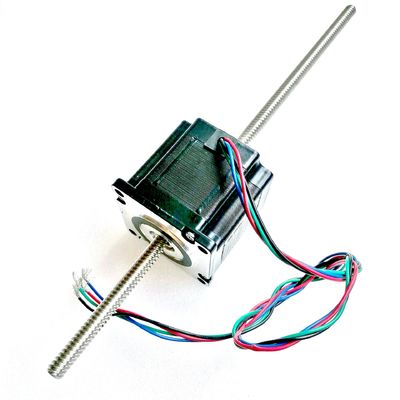

This is a 57mm size (NEMA23) hybrid stepper motor with through type lead screw .

Screw lead is related to motor’s linear speed.

Motor’s height is 41mm, and it’s related to motor’s torque, with bigger height, motor’s torque is higher.

Please confirm your required linear speed and thrust, before you order motor samples, we will recommend suitable motors with suitable lead screw type based on your requirement.

Electrical Specification of nema 23 linear stepper motor:



Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

 Holding Torque # of Leads Detent Torque Rotor Inertia Mass
  ( °) (L)mm A Ω mH N.m No. g.cm g.cm Kg
57BYGH41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
57BYGH51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
57BYGH56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
57BYGH64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
57BYGH76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1



Screw rod Specification of lead screw:



Screw Diameter(mm) Screw Lead(mm) Screw Pitch(mm) Travel per step(mm) Screw Diameter(mm) Screw Lead(mm) Screw Pitch(mm) Travel per step(mm)
Tr8 1 1 0.005 Tr8 10 2 0.05
  2 2 0.01   12 2 0.06
  3 1.5 0.015   14 2 0.07
  4 2 0.02
  8 2 0.04
Tr10 2 2 0.01 Tr12 2 2 0.01
  3 1.5 0.015   3 3 0.015
  4 2 0.02   8 2 0.04
  8 2 0.04   10 2 0.05
  10 2 0.05
  12 2 0.06



Mechanical Dimension:MM

NEMA23 57mm Hybrid Screw Stepper Motor 24V 1.8° 4 Leads Through Type Stepping Motor 0
