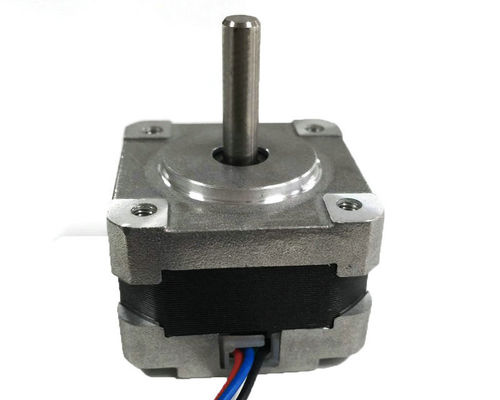

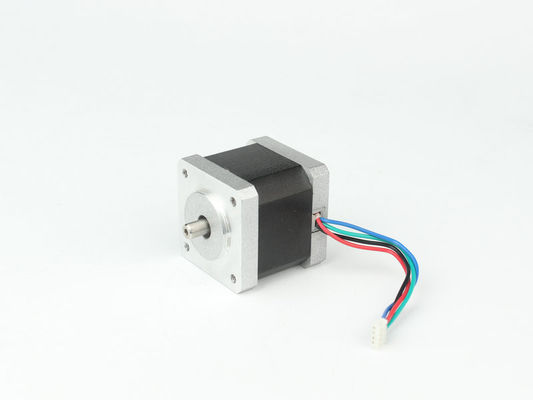

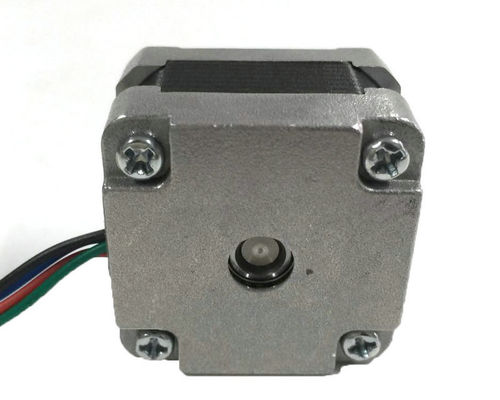

35BYGH NEMA 14 Stepper Motor 4 Wires 1.8° 1.5Kg.Cm Holding Torque Two Phase

35BYGH NEMA 14 Stepper Motor 4 Wires 1.8° 1.5Kg.Cm Holding Torque Two Phase
35BYGH NEMA 14 Stepper Motor 4 Wires 1.8° 1.5Kg.Cm Holding Torque Two Phase 35BYGH NEMA 14 Stepper Motor 4 Wires 1.8° 1.5Kg.Cm Holding Torque Two Phase 35BYGH NEMA 14 Stepper Motor 4 Wires 1.8° 1.5Kg.Cm Holding Torque Two Phase

Large Image :  35BYGH NEMA 14 Stepper Motor 4 Wires 1.8° 1.5Kg.Cm Holding Torque Two Phase

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 35BYGH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $5~10/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram,D/P
Supply Ability: 10000Units per month
Contact Now Chat Now

35BYGH NEMA 14 Stepper Motor 4 Wires 1.8° 1.5Kg.Cm Holding Torque Two Phase

Description
Type: Hybrid Stepper Motor Step Angle: 1.8°
Phase: 2 Wire: 4-Lead
Body Size: 27mm/34mm/40mm Insulation Resistance: 100MΩ (MIN.)
Dielectric Strength: 600VAC 1mA 1S
Highlight:

35BYGH NEMA 14 Stepper Motor

,

Two Phase NEMA 14 Stepper Motor

,

35BYGH 4 wire stepper motor

NEMA 14 35mm 35BYGH hybrid stepper motor 4 wires 1.8° 1.5Kg.cm Holding Torque

Our stepper motor series are: 20mm, 28mm, 35mm, 39mm, 42mm, 57mm, 60mm, 86mm, 110mm, 130mm. Two-phase, three-phase and four-phase hybrid stepping motor. The DC brushless motor range includes 42BLS, 57BL(S), 86BLS, and matching DC brushless drivers.
Therefore, the products are in line with ROHS requirements. Applications include robotics, industrial electronic automation equipment, medical equipment, advertising equipment, printing equipment, textile machinery and so on.

Mechanical Dimension:MM

35BYGH NEMA 14 Stepper Motor 4 Wires 1.8° 1.5Kg.Cm Holding Torque Two Phase 0

Typical Applications

  • 3D Printer
  • Monitoring Equipment
  • Medical Machinery
  • Vending Machine
  • Engineering Vehicle
  • CNC Engraving Machine
  • ATM Machine

 Technique Parameter

Item Specification
Step Angel 1.8°
Temperature Rise 80℃ max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100Ω Min.,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max.(450g-load)
Shaft Axial Play 0.08Max.(450g-load)
Max.radial force 28N(20mm from the flange)
Max.axial force 10N



Specifications

Model No. Step Angle (°) Motor Length (mm) Current/Phase A Resistence /Phase Ω Industance /Phase mH Holding Torquue g.cm Leads No. Detent Torque g.cm Rotor Inertia g.cm² Weight Kg

35BYGH27

-0504

 1.8 27 0.5 10 14 1000 4 80 6 0.13

35BYGH34

-1004

 1.8 34 1 2 3 1200 4 110 9 0.17

35BYGH40

-1004

 1.8 40 1 2 4 1500 4 140 12 0.22



The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.
