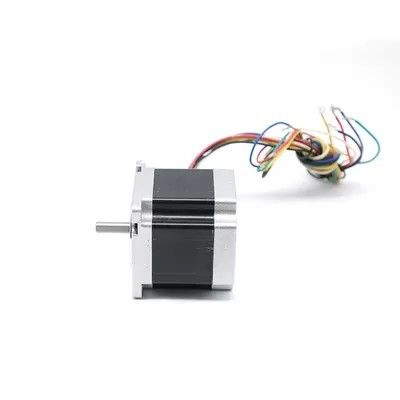

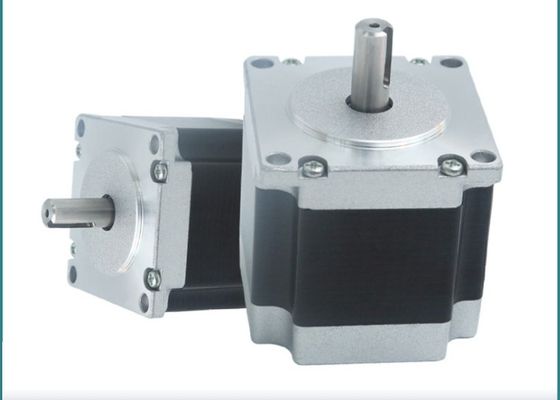

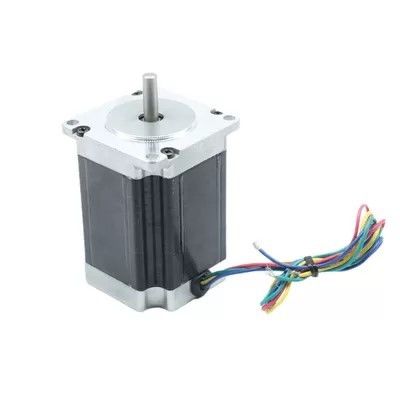

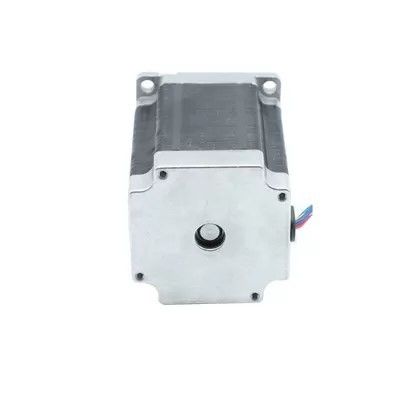

Nema23 Bipolar 2 Phase Hybrid Stepper Motor 57mm Stepper Motor 1.8° Step Angle For CNC Machines

Nema23 Bipolar 2 Phase Hybrid Stepper Motor 57mm Stepper Motor 1.8° Step Angle For CNC Machines
Nema23 Bipolar 2 Phase Hybrid Stepper Motor 57mm Stepper Motor 1.8° Step Angle For CNC Machines Nema23 Bipolar 2 Phase Hybrid Stepper Motor 57mm Stepper Motor 1.8° Step Angle For CNC Machines Nema23 Bipolar 2 Phase Hybrid Stepper Motor 57mm Stepper Motor 1.8° Step Angle For CNC Machines Nema23 Bipolar 2 Phase Hybrid Stepper Motor 57mm Stepper Motor 1.8° Step Angle For CNC Machines

Large Image :  Nema23 Bipolar 2 Phase Hybrid Stepper Motor 57mm Stepper Motor 1.8° Step Angle For CNC Machines

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 57BYGH
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $10~20/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000Units/month
Contact Now Chat Now

Nema23 Bipolar 2 Phase Hybrid Stepper Motor 57mm Stepper Motor 1.8° Step Angle For CNC Machines

Description
Type: Hybrid Stepper Motor Step Angle: 1.8 Degree
Leads: 4 Thickness: 41-100mm
Insulation Resistance: 100MΩ (MIN.) Dielectric Strength: 600VAC 1mA 1S
Highlight:

Nema23 Hybrid Stepper Motor

,

2 Phase Hybrid Stepper Motor

,

CNC Machines 57mm Stepper Motor

57mm Nema23 Bipolar 2-Phase Hybrid Stepper Motor - 1.8° Step Angle for CNC Machines

The 57mm Nema23 bipolar 2-phase hybrid stepper motor, featuring a 1.8° step angle, is engineered for CNC machines. Its precise step control ensures accurate tool positioning, while the bipolar design delivers reliable torque for cutting and milling tasks. Ideal for CNC routers and mills, it balances durability with precision to handle continuous, high-demand operations.​
Genaral Specification:

Item

Specifications

Step Angle

1.8°

Step Angle Accuracy

±5%(full step,no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)
Holding Torque

3N.m



Electrical Specification:



Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

 Holding Torque # of Leads Detent Torque Rotor Inertia Mass
  ( °) (L)mm A Ω mH N.m No. g.cm g.cm Kg
57BYGH41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
57BYGH51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
57BYGH56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
57BYGH64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
57BYGH76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1
57BYGH82-3004 1.8 82 3 1.2 4 2.1 4 1000 600 1.2
57BYGH100-4204 1.8 100 4.2 0.75 3 3 4 1100 700 1.3



Drawing of 57BYGH56 stepper motor:

Nema23 Bipolar 2 Phase Hybrid Stepper Motor 57mm Stepper Motor 1.8° Step Angle For CNC Machines 0

Stepper Motor Applications

    Stepper motors are widely used across industries due to their precise positioning, reliable performance, and ease of control. Below are the key applications of stepper motors in various fields.

Why Choose Stepper Motors?

✔ High Precision – Maintain exact positioning without feedback systems (open-loop control).
✔ Reliable & Durable – Long lifespan with minimal maintenance.
✔ Wide Speed & Torque Range – Suitable for low to medium-speed applications.
✔ Cost-Effective – More affordable than servo motors for many applications.

Whether for industrial automation, medical devices, or consumer electronics, stepper motors provide accurate, repeatable motion control in compact and energy-efficient packages.

Looking for a custom stepper motor solution? Contact us for tailored specifications!
