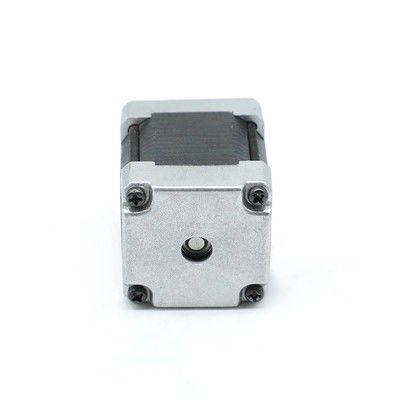

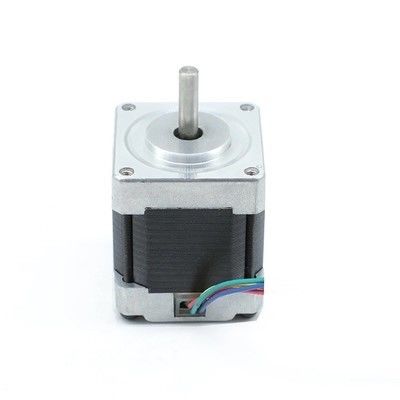

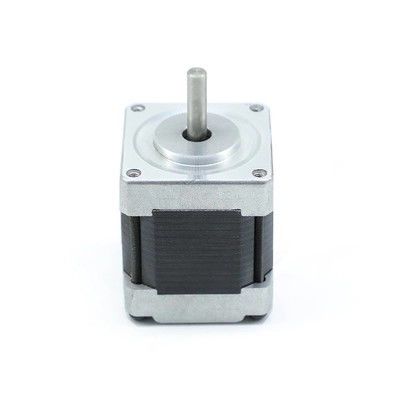

39mm Hybrid Stepper Motor Low Noise 1.8° Step 4 Leads Nema 16 Stepper Motor

39mm Hybrid Stepper Motor Low Noise 1.8° Step 4 Leads Nema 16 Stepper Motor
39mm Hybrid Stepper Motor Low Noise 1.8° Step 4 Leads Nema 16 Stepper Motor 39mm Hybrid Stepper Motor Low Noise 1.8° Step 4 Leads Nema 16 Stepper Motor 39mm Hybrid Stepper Motor Low Noise 1.8° Step 4 Leads Nema 16 Stepper Motor

Large Image :  39mm Hybrid Stepper Motor Low Noise 1.8° Step 4 Leads Nema 16 Stepper Motor

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 39BYGH
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $6~10/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000Units/month
Contact Now Chat Now

39mm Hybrid Stepper Motor Low Noise 1.8° Step 4 Leads Nema 16 Stepper Motor

Description
Motor Type: Hybrid Stepper Motor Step Angle: 1.8deg
Wire: 4-Lead Body Size: 20mm/22mm/25mm
Insulation Resistance: 100MΩ (MIN.) Dielectric Strength: 600VAC 1mA 1S
Highlight:

39mm Hybrid Stepper Motor

,

Low Noise Hybrid Stepper Motor

,

4 Leads nema 16 stepper motor

39mm Nema 16 Hybrid Stepper Motor - Low Noise, 1.8° Step, 4 Leads

The 39mm Nema 16 hybrid stepper motor stands out for its low noise operation, featuring a 1.8° step angle and 4-lead design. Ideal for precision-focused setups like lab instruments, small 3D printers, and compact robotics, it delivers smooth, quiet movement with reliable step control. Its compact size and noise-reducing build make it a smart choice for applications where minimal sound and accuracy matter.


Genaral Specification:

Item

Specifications

Step Angle

1.8°

Step Angle Accuracy

±5%(full step,no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)



Electrical Specification:





Model No.
Step Angle
Motor Length
Current/Phase
Resistance/Phase
Inductance/Phase
Holding Torque
Number of leads
Weight
(°)
(mm)
(A)
(Ω)
(mH)
(kg.cm)
(No.)
(Kg)
39BYGH20-4804
1.8
20
0.48
28
21
1
4
0.1
39BYGH20-0704
1.8
20
0.7
12
11
1.2
4
0.1
39BYGH22-0404
1.8
22
0.4
30
20
 1.3
4
 0.12
39BYGH25-0404
1.8
25
0.4
36
15
1.7
6
0.15
Above only for representative products, products of special request can be made according to the customer request.



Mechanical Dimension:MM

39mm Hybrid Stepper Motor Low Noise 1.8° Step 4 Leads Nema 16 Stepper Motor 0



Stepper motors are versatile components used across numerous industries, thanks to their ability to provide precise, controlled movement. Here are key applications where they excel:​
  • Automation & Manufacturing: In assembly lines, they drive conveyor belts, robotic arms, and precision positioning systems, ensuring consistent part alignment and repetitive task accuracy—critical for mass production efficiency.​
  • 3D Printing: They power extruders and build plates, translating digital designs into physical objects with layer-by-layer precision, relying on precise step control to maintain print quality.​
  • Medical Devices: Used in equipment like syringe pumps, MRI table adjustments, and lab automation tools, where exact movement (e.g., micro-dose delivery or sample positioning) is vital for patient safety and test accuracy.​
  • CNC Machinery: In routers, mills, and lathes, stepper motors control tool movement along axes, enabling intricate cuts and shapes with tight tolerances, essential for custom part fabrication.​
  • Robotics: From small hobby robots to industrial automation bots, they manage joint movements, gripper operations, and navigation, balancing torque and precision for smooth, controlled motion.​
  • HVAC & Appliances: They regulate dampers in air conditioning systems, control valve positions in refrigerators, or adjust flaps in smart vents, ensuring efficient temperature and airflow management.​
  • Aerospace & Defense: Used in satellite antenna positioning, aircraft control systems, and drone stabilization, where reliability and precise movement under harsh conditions are non-negotiable.​
Their adaptability to varying torque, size, and step angle requirements makes stepper motors indispensable in scenarios demanding both accuracy and repeatability.
