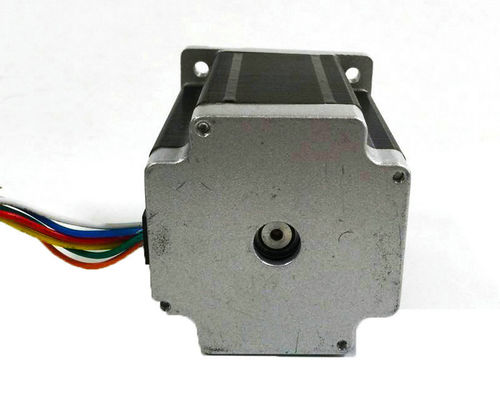

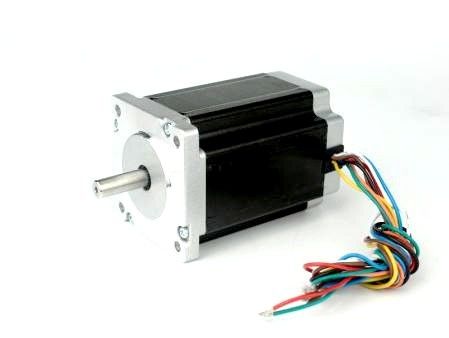

60mm Hybrid Stepper Motor 1.8 Step Angle 6 Lead Wire Nema 24 Stepper Motor

60mm Hybrid Stepper Motor 1.8 Step Angle 6 Lead Wire Nema 24 Stepper Motor
60mm Hybrid Stepper Motor 1.8 Step Angle 6 Lead Wire Nema 24 Stepper Motor 60mm Hybrid Stepper Motor 1.8 Step Angle 6 Lead Wire Nema 24 Stepper Motor 60mm Hybrid Stepper Motor 1.8 Step Angle 6 Lead Wire Nema 24 Stepper Motor

Large Image :  60mm Hybrid Stepper Motor 1.8 Step Angle 6 Lead Wire Nema 24 Stepper Motor

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 60BYGH
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $10~25/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000Units/month
Contact Now Chat Now

60mm Hybrid Stepper Motor 1.8 Step Angle 6 Lead Wire Nema 24 Stepper Motor

Description
Type: Hybrid Stepper Motor Step Angle: 1.8 Degree
Leads: 4 Or 6 Thickness: 56-87mm
Insulation Resistance: 100MΩ (MIN.) Dielectric Strength: 600VAC 1mA 1S
Highlight:

60mm Hybrid Stepper Motor

,

6 Lead Wire Hybrid Stepper Motor

,

60mm nema 24 stepper motor

60mm Nema24 Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire

The 60mm Nema24 bipolar 2-phase hybrid stepper motor, featuring a 1.8° step angle, is engineered for CNC machines. Its precise step control ensures accurate tool positioning, while the bipolar design delivers reliable torque for cutting and milling tasks. Ideal for CNC routers and mills, it balances durability with precision to handle continuous, high-demand operations.​
Genaral Specification:

Item

Specifications

Step Angle

1.8°

Step Angle Accuracy

±5%(full step,no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)
Holding Torque

3N.m



Electrical Specification:

Model No. Step Angle
(°)		 Lead Wire
(NO.)		 Voltage
(V)		 Current
(A/Phase)		 Resistance
(Ω/Phase)		 Inductance
(MH/Phase)		 Holding Torque
(Kg.cm)		 Motor Length
L(mm)		 Motor Weight
(Kg)
60BYGH56-0306 1.8 6 2.4 3.0 0.8 1.6 10 56 0.77
60BYGH56-0104 1.8 4 6.0 1.0 6.0 16 12.5 56 0.77
60BYGH64-1404 1.8 4 5.32 1.4 3.8 10 12.5 64 1.00
60BYGH64-1506 1.8 6 3.6 1.5 8.4 8.0 12.5 64 1.00
60BYGH87-0404 1.8 4 2.8 4.0 0.8 3.5 23.5 87 1.34
60BYGH87-0304 1.8 4 4.5 3.0 1.5 5.0 26 87 1.34



Drawing of stepper motor:mm



60mm Hybrid Stepper Motor 1.8 Step Angle 6 Lead Wire Nema 24 Stepper Motor 0

Stepper Motor Applications

    Stepper motors are widely used across industries due to their precise positioning, reliable performance, and ease of control. Below are the key applications of stepper motors in various fields.

Why Choose Stepper Motors?

✔ High Precision – Maintain exact positioning without feedback systems (open-loop control).
✔ Reliable & Durable – Long lifespan with minimal maintenance.
✔ Wide Speed & Torque Range – Suitable for low to medium-speed applications.
✔ Cost-Effective – More affordable than servo motors for many applications.

Whether for industrial automation, medical devices, or consumer electronics, stepper motors provide accurate, repeatable motion control in compact and energy-efficient packages.

Looking for a custom stepper motor solution? Contact us for tailored specifications!
