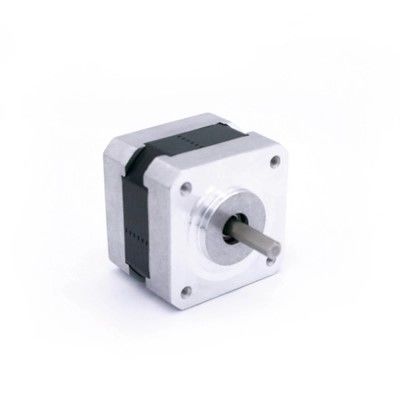

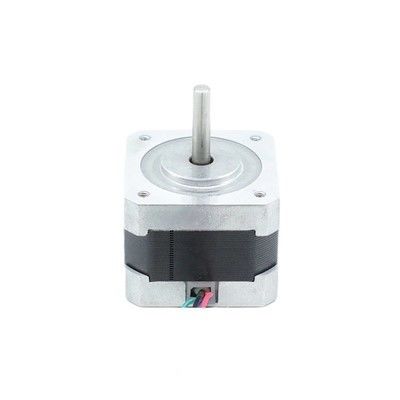

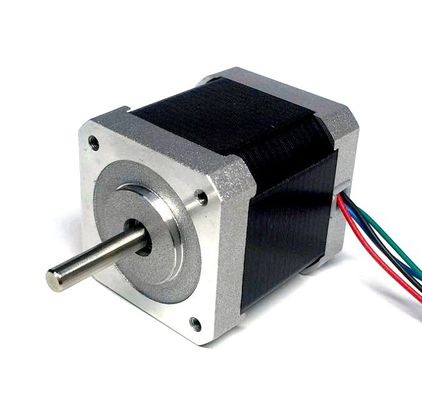

1.8° Step 42mm Stepper Motor Nema 17 7.3Kg.Cm Torque For Industrial Automation

1.8° Step 42mm Stepper Motor Nema 17 7.3Kg.Cm Torque For Industrial Automation
1.8° Step 42mm Stepper Motor Nema 17 7.3Kg.Cm Torque For Industrial Automation 1.8° Step 42mm Stepper Motor Nema 17 7.3Kg.Cm Torque For Industrial Automation 1.8° Step 42mm Stepper Motor Nema 17 7.3Kg.Cm Torque For Industrial Automation

Large Image :  1.8° Step 42mm Stepper Motor Nema 17 7.3Kg.Cm Torque For Industrial Automation

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 42BYGH
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $5~10/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000Units/month
Contact Now Chat Now

1.8° Step 42mm Stepper Motor Nema 17 7.3Kg.Cm Torque For Industrial Automation

Description
Motor Type: Hybrid Stepper Motor Step Angle: 1.8deg
Wire: 4-Lead Body Size: 34mm/40mm/48mm/60mm
Insulation Resistance: 100MΩ (MIN.) Dielectric Strength: 600VAC 1mA 1S
Highlight:

7.3Kg.Cm Torque 42mm Stepper Motor

,

Nema 17 42mm Stepper Motor

,

7.3Kg.Cm Torque Nema 17 Stepper Motor

1.8° Step 42mm Hybrid Motor - Nema 17, 1.6-7.3Kg.cm Torque for Industrial Automation

The 1.8° Step 42mm Hybrid Motor, a Nema 17 model, offers flexible torque ranging from 1.6 to 7.3Kg.cm, making it ideal for industrial automation. It delivers precise, controlled movement, suitable for conveyors, robotic arms, and assembly line tools. Its adjustable torque adapts to varying load demands, ensuring reliable performance in diverse industrial workflows.​


Genaral Specification:

Item

Specifications

Step Angle

1.8°

Step Angle Accuracy

±5%(full step,no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)



Electrical Specification:





Model No.
Step Angle
Motor Length
Current/Phase
Resistance/Phase
Inductance/Phase
Holding Torque
Number of leads
Detent Torque
Rotor Inertia
(°)
(mm)
(A)
(Ω)
(mH)
(kg.cm)
(No.)
(g.cm)
g.cm2
42BYGH25-0404
1.8
25
0.4
24
36
1.8
4
75
20
42BYGH28-0504
1.8
28
0.5
20
21
1.5
4
85
24
42BYGH34-1334
1.8
34
1.33
2.1
2.5
2.2
4
120
34
42BYGH34-0406
1.8
34
0.4
24
15
1.6
6
120
34
42BYGH34-0956
1.8
34
0.95
4.2
2.5
1.6
6
120
34
42BYGH40-0406
1.8
40
0.4
30
30
2.6
6
150
54
42BYGH40-1684
1.8
40
1.68
1.65
3.2
3.6
4
150
54
42BYGH40-1206
1.8
40
1.2
3
2.7
2.9
6
150
54
42BYGH48-0406
1.8
48
0.4
30
25
3.1
6
260
68
42BYGH48-1684
1.8
48
1.68
1.65
2.8
4.4
4
260
68
42BYGH48-1206
1.8
48
1.2
3.3
2.8
3.17
6
260
68
42BYGH60-0406
1.8
60
0.4
30
39
6.5
6
280
102
42BYGH60-1704
1.8
60
1.7
3
6.2
7.3
4
280
102
42BYGH60-1206
1.8
60
1.2
6
7
5.6
6
280
102
Above only for representative products, products of special request can be made according to the customer request.



Mechanical Dimension:MM

1.8° Step 42mm Stepper Motor Nema 17 7.3Kg.Cm Torque For Industrial Automation 0



Stepper motors are versatile components used across numerous industries, thanks to their ability to provide precise, controlled movement. Here are key applications where they excel:​
  • Automation & Manufacturing: In assembly lines, they drive conveyor belts, robotic arms, and precision positioning systems, ensuring consistent part alignment and repetitive task accuracy—critical for mass production efficiency.​
  • 3D Printing: They power extruders and build plates, translating digital designs into physical objects with layer-by-layer precision, relying on precise step control to maintain print quality.​
  • Medical Devices: Used in equipment like syringe pumps, MRI table adjustments, and lab automation tools, where exact movement (e.g., micro-dose delivery or sample positioning) is vital for patient safety and test accuracy.​
  • CNC Machinery: In routers, mills, and lathes, stepper motors control tool movement along axes, enabling intricate cuts and shapes with tight tolerances, essential for custom part fabrication.​
  • Robotics: From small hobby robots to industrial automation bots, they manage joint movements, gripper operations, and navigation, balancing torque and precision for smooth, controlled motion.​
  • HVAC & Appliances: They regulate dampers in air conditioning systems, control valve positions in refrigerators, or adjust flaps in smart vents, ensuring efficient temperature and airflow management.​
  • Aerospace & Defense: Used in satellite antenna positioning, aircraft control systems, and drone stabilization, where reliability and precise movement under harsh conditions are non-negotiable.​
Their adaptability to varying torque, size, and step angle requirements makes stepper motors indispensable in scenarios demanding both accuracy and repeatability.
