15mm Diameter Gear Reduction Stepper Motor 5V DC For Miniature Equipment​

15mm Diameter Gear Reduction Stepper Motor 5V DC For Miniature Equipment​
15mm Diameter Gear Reduction Stepper Motor 5V DC For Miniature Equipment​ 15mm Diameter Gear Reduction Stepper Motor 5V DC For Miniature Equipment​ 15mm Diameter Gear Reduction Stepper Motor 5V DC For Miniature Equipment​ 15mm Diameter Gear Reduction Stepper Motor 5V DC For Miniature Equipment​

Large Image :  15mm Diameter Gear Reduction Stepper Motor 5V DC For Miniature Equipment​

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 15BY45-G
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: $2.5~5/unit
Packaging Details: The product is packed with pearl cotton, and the outside is in a carton
Delivery Time: 10~30 work days
Payment Terms: T/T,Western Union,MoneyGram,D/P
Supply Ability: 100000\ Units/year
Contact Now Chat Now

15mm Diameter Gear Reduction Stepper Motor 5V DC For Miniature Equipment​

Description
Motor Type: Geared Stepper Motor Motor Size: 15mm Diameter
Step Angle: 18°/gear Ratio Driving Voltage: 5V DC
Gear Ratio: 2:1 To 1000:1 Insulation Resistance: 100MΩ (MIN.)
Dielectric Strength: 600VAC 1mA 1S
Highlight:

15mm Diameter Gear Reduction Stepper Motor

,

Gear Reduction Stepper Motor

,

Miniature Equipment​ Geared Servo Motor

15mm Gear Reduced Stepper Motor Precision Metal Gearbox & Protective Case for Miniature Equipment​

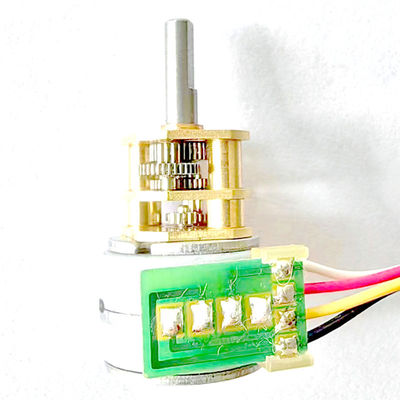

The 15mm motor, paired with a 12mm×10mm (Length×Width) gearbox, offers versatile performance with gear ratios ranging from 2:1 to 1000:1. Customers can select the ideal ratio based on their speed and torque needs—higher ratios deliver slower output speed and increased torque, ensuring a perfect match for diverse applications.​

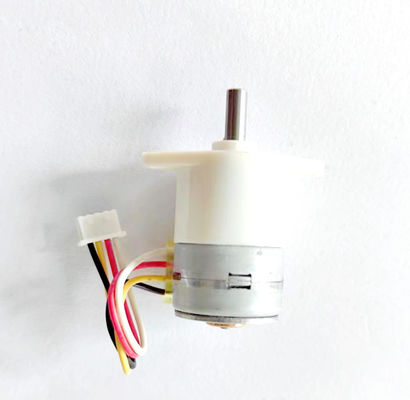

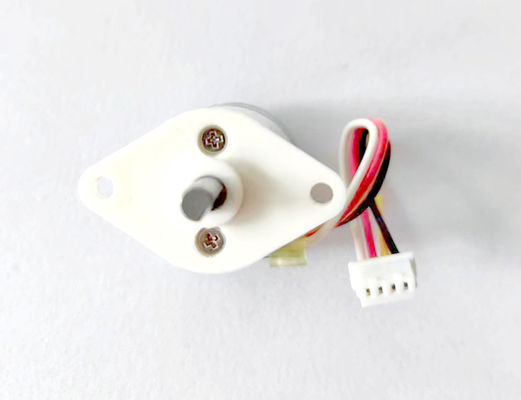

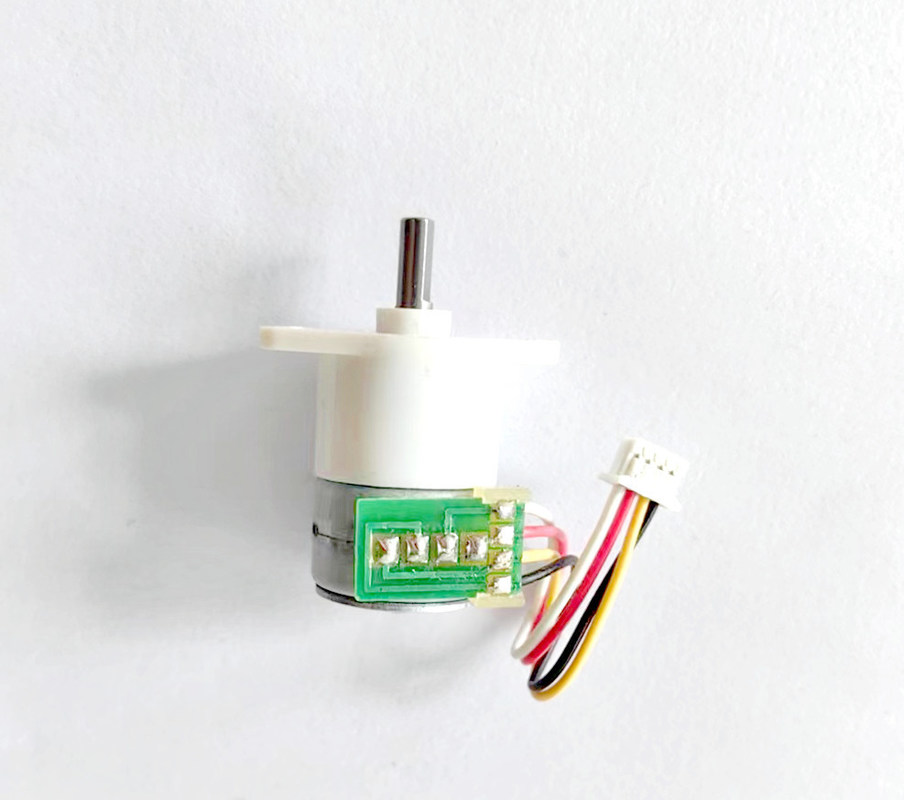

A plastic case comes standard to protect the gearbox from dust, though it can be removed for customers who prefer a streamlined design. This combination of compact size, customizable gear ratios, and optional dust protection makes the motor suitable for everything from small-scale robotics to precision instruments, adapting seamlessly to varying speed and torque requirements.​


Motor Parameters:



Motor type PM stepper motor
Gearbox type 10*12mm gearbox
Phase No. 2 phases
Resistance 10Ω/phase
Rated voltage 5V DC
Step angle 18°/gear ratio
Output shaft 3mm D2.5 D shaft
Connector type Molex 51021-0400 (1.25mm pitch)

Gearbox Parameters:



Gear ratio 2:1 5:1 10:1 15:1 20:1 30:1 36:1 50:1 63:1 67:1 89:1 100:1
Precise ratio 2.002 4.995 9.677 14.754 20.501 29.120 36.122 51.103 63.071 66.801 89.227 99.002
Tooth number 23 20 13 18 15 12 20 20 14 17 14 13
Gear levels 2 2 2 3 3 3 4 4 4 4 4 4
Efficiency 80% 80% 80% 72% 72% 72% 65% 65% 65% 65% 65% 65%

Gear ratio 110:1 150:1 172:1 210:1 250:1 275:1 298:1 380:1 420:1 500:1 600:1 1000:1
Precise ratio 110.407 150.948 171.883 210.591 250.111 274.403 297.924 387.689 421.296 506.155 599.394 986.406
Tooth number 12 18 13 12 13 12 12 12 12 18 16 12
Gear levels 5 5 5 5 5 5 5 5 5 7 7 7
Efficiency 59% 59% 59% 59% 59% 59% 59% 59% 59% 47% 47% 47%

Design drawing

15mm Diameter Gear Reduction Stepper Motor 5V DC For Miniature Equipment​ 0
