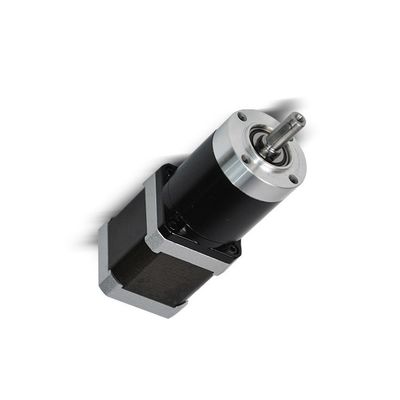

1.8° Step Angle Nema 17 Servo Motor 42mm High Torque Geared For Robotics Joints

1.8° Step Angle Nema 17 Servo Motor 42mm High Torque Geared For Robotics Joints
1.8° Step Angle Nema 17 Servo Motor 42mm High Torque Geared For Robotics Joints

Large Image :  1.8° Step Angle Nema 17 Servo Motor 42mm High Torque Geared For Robotics Joints

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 42BYGH-G
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $18~28/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000Units/month
Contact Now Chat Now

1.8° Step Angle Nema 17 Servo Motor 42mm High Torque Geared For Robotics Joints

Description
Type: Gearbox Stepper Motor Rated Voltage: 5-24V
Gear Ratio: 1:3.7~139 Step Angle: 1.8°
Insulation Resistance: 100MΩ (MIN.) Dielectric Strength: 600VAC 1mA 1S
Highlight:

High Torque nema 17 servo motor

,

Robotics Joints nema 17 servo motor

,

Robotics Joints Planetary Stepper Motor

1.8° Step Angle Nema17 Motor – 42mm, High Torque Geared for Robotics Joints

The 1.8° Step Angle Nema17 motor, measuring 42mm, is a high-torque geared solution engineered for robotics joints. Its 2-phase planetary gearbox amplifies torque output, ensuring precise, smooth movement critical for robotic articulation—from small-scale humanoid fingers to industrial arm joints. With a 1.8° step angle, it delivers exceptional positional accuracy, while the compact 42mm frame fits seamlessly into space-constrained robotic designs. Ideal for both hobbyist and professional robotics, it balances power and precision, making it a reliable choice for applications demanding consistent, controlled motion in joint actuation.
The necessary driving device or control device for the customer can cooperate with the customer for development.
The basic step angle of the motor is 1.8 degrees.
At the same time, we can provide the same size products with a step angle of 0.9 degrees!

Genaral Specification:

PRODUCT NAME

NEMA 17 gearbox stepper motor

MODEL

42BYGH34-G

GEAR RATIO

1:3.7~139

NO.OF PHASES

2 PHASES

STEP ANGLE

18°/STEP

COIL RESISTANCE

10Ω±10%

PHASE INDUCTANCE

12±20% mH

HOLDING TORQUE

1.2 Kg.cm

INSULATION CLASS

B

WEIGHE

0.25KG

OEM & ODM SERVICE

AVAILABLE



Electrical Specification:





Model No.
Step Angle
Motor Length
Current/Phase
Resistance/Phase
Inductance/Phase
Holding Torque
Number of leads
Detent Torque
Rotor Inertia
(°)
(mm)
(A)
(Ω)
(mH)
(kg.cm)
(No.)
(g.cm)
g.cm2
42BYGH25-0404
1.8
25
0.4
24
36
1.8
4
75
20
42BYGH28-0504
1.8
28
0.5
20
21
1.5
4
85
24
42BYGH34-1334
1.8
34
1.33
2.1
2.5
2.2
4
120
34
42BYGH34-0406
1.8
34
0.4
24
15
1.6
6
120
34
42BYGH34-0956
1.8
34
0.95
4.2
2.5
1.6
6
120
34
42BYGH40-0406
1.8
40
0.4
30
30
2.6
6
150
54
42BYGH40-1684
1.8
40
1.68
1.65
3.2
3.6
4
150
54
42BYGH40-1206
1.8
40
1.2
3
2.7
2.9
6
150
54
42BYGH48-0406
1.8
48
0.4
30
25
3.1
6
260
68
42BYGH48-1684
1.8
48
1.68
1.65
2.8
4.4
4
260
68
42BYGH48-1206
1.8
48
1.2
3.3
2.8
3.17
6
260
68
42BYGH60-0406
1.8
60
0.4
30
39
6.5
6
280
102
42BYGH60-1704
1.8
60
1.7
3
6.2
7.3
4
280
102
42BYGH60-1206
1.8
60
1.2
6
7
5.6
6
280
102



Gearbox Ratio Datasheet



Reduction ratio

3.71

5.18

13.76

19.2

26.8

51

71

99.5

139

Number of gear trains

1

2

3

Length(L2)   mm

27.3

35

42.7

Max.rated torque    kg.cm

20

30

40

Short time permissible torque  kg.cm

40

60

80

Weight      g

350

450

550



Mechanical Dimension:MM



1.8° Step Angle Nema 17 Servo Motor 42mm High Torque Geared For Robotics Joints 0

Typical Applications:

  • ​Textile Equipment
  • Automatic Control
  • Packing Machine
  • Engineering Vehicle
  • 3D Printer
  • New Energy
  • Gate Openers
  • Vending Machine
  • Conveyor System
  • Medical Equipment
  • Fluid Control
  • OA Financial Equipment
