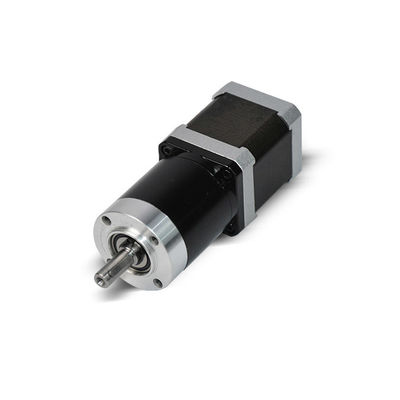

Nema17 42mm Geared Stepper Motor 1.8° Step Angle High Torque Stepper Motor 2 Phase

Nema17 42mm Geared Stepper Motor 1.8° Step Angle High Torque Stepper Motor 2 Phase
Nema17 42mm Geared Stepper Motor 1.8° Step Angle High Torque Stepper Motor 2 Phase

Large Image :  Nema17 42mm Geared Stepper Motor 1.8° Step Angle High Torque Stepper Motor 2 Phase

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 42BYGH-G
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $18~28/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000Units/month
Contact Now Chat Now

Nema17 42mm Geared Stepper Motor 1.8° Step Angle High Torque Stepper Motor 2 Phase

Description
Type: Gearbox Stepper Motor Rated Voltage: 5-24V
Gear Ratio: 1:3.7~139 Step Angle: 1.8°
Insulation Resistance: 100MΩ (MIN.) Dielectric Strength: 600VAC 1mA 1S
Highlight:

Nema17 Geared Stepper Motor

,

2 Phase Geared Stepper Motor

,

42mm High Torque Stepper Motor

Nema17 42mm Geared Stepper Motor High Torque 1.8° Step Angle 2 Phase Planetary Gearbox

42BYGH product is a hybrid stepping motor with a square size of 42*34. The length may be adjusted according to the requirements of power, etc., and the range is generally between 34~60mm. The length of the planetary gear reducer is between 27~45mm. The gear reduction ratio can be customized according to customer requirements.It can be re-evaluated after special request.
Hybrid stepping motor has the advantages of high control precision, high transmission resolution and large output torque. It is widely used in engraving machines, medical equipment, stage lighting, precision instruments and other fields.
The necessary driving device or control device for the customer can cooperate with the customer for development.
The basic step angle of the motor is 1.8 degrees.
At the same time, we can provide the same size products with a step angle of 0.9 degrees!

Genaral Specification:

PRODUCT NAME

NEMA 17 gearbox stepper motor

MODEL

42BYGH34-G

GEAR RATIO

1:3.7~139

NO.OF PHASES

2 PHASES

STEP ANGLE

18°/STEP

COIL RESISTANCE

10Ω±10%

PHASE INDUCTANCE

12±20% mH

HOLDING TORQUE

1.2 Kg.cm

INSULATION CLASS

B

WEIGHE

0.25KG

OEM & ODM SERVICE

AVAILABLE



Electrical Specification:





Model No.
Step Angle
Motor Length
Current/Phase
Resistance/Phase
Inductance/Phase
Holding Torque
Number of leads
Detent Torque
Rotor Inertia
(°)
(mm)
(A)
(Ω)
(mH)
(kg.cm)
(No.)
(g.cm)
g.cm2
42BYGH25-0404
1.8
25
0.4
24
36
1.8
4
75
20
42BYGH28-0504
1.8
28
0.5
20
21
1.5
4
85
24
42BYGH34-1334
1.8
34
1.33
2.1
2.5
2.2
4
120
34
42BYGH34-0406
1.8
34
0.4
24
15
1.6
6
120
34
42BYGH34-0956
1.8
34
0.95
4.2
2.5
1.6
6
120
34
42BYGH40-0406
1.8
40
0.4
30
30
2.6
6
150
54
42BYGH40-1684
1.8
40
1.68
1.65
3.2
3.6
4
150
54
42BYGH40-1206
1.8
40
1.2
3
2.7
2.9
6
150
54
42BYGH48-0406
1.8
48
0.4
30
25
3.1
6
260
68
42BYGH48-1684
1.8
48
1.68
1.65
2.8
4.4
4
260
68
42BYGH48-1206
1.8
48
1.2
3.3
2.8
3.17
6
260
68
42BYGH60-0406
1.8
60
0.4
30
39
6.5
6
280
102
42BYGH60-1704
1.8
60
1.7
3
6.2
7.3
4
280
102
42BYGH60-1206
1.8
60
1.2
6
7
5.6
6
280
102



Gearbox Ratio Datasheet



Reduction ratio

3.71

5.18

13.76

19.2

26.8

51

71

99.5

139

Number of gear trains

1

2

3

Length(L2)   mm

27.3

35

42.7

Max.rated torque    kg.cm

20

30

40

Short time permissible torque  kg.cm

40

60

80

Weight      g

350

450

550



Mechanical Dimension:MM



Nema17 42mm Geared Stepper Motor 1.8° Step Angle High Torque Stepper Motor 2 Phase 0

Typical Applications:

  • ​Textile Equipment
  • Automatic Control
  • Packing Machine
  • Engineering Vehicle
  • 3D Printer
  • New Energy
  • Gate Openers
  • Vending Machine
  • Conveyor System
  • Medical Equipment
  • Fluid Control
  • OA Financial Equipment
