35mm Geared Stepper Motor Low Noise Permanent Magnet Stepper Motor For Precision Automation

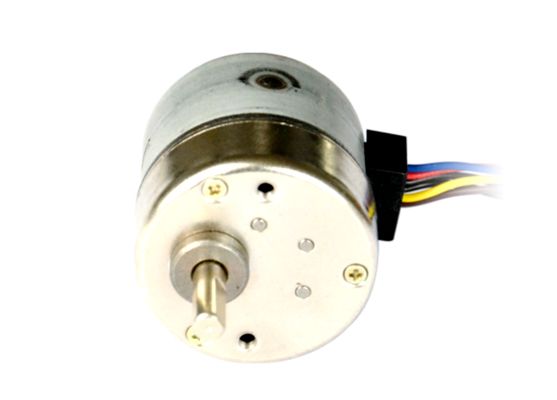

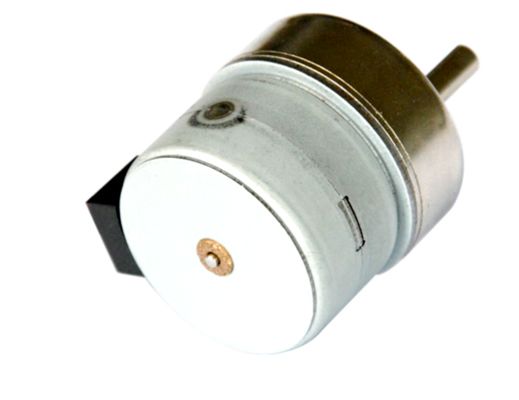

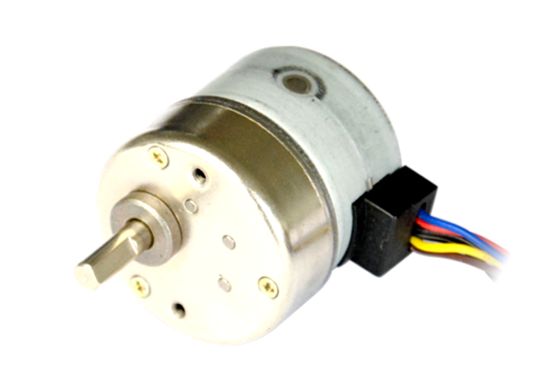

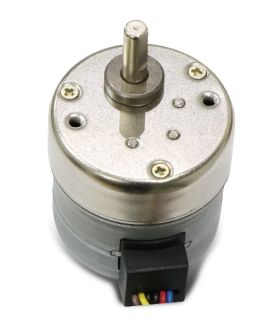

Large Image : 35mm Geared Stepper Motor Low Noise Permanent Magnet Stepper Motor For Precision Automation

Product Details:

Place of Origin:	China
Brand Name:	WEIGU
Certification:	RoHS
Model Number:	35BY-11G

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Price:	$6~9/unit
Packaging Details:	Standard export package, or can be customized
Delivery Time:	7-30 work days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	10000Units/month

Contact Now Chat Now

35mm Geared Stepper Motor Low Noise Permanent Magnet Stepper Motor For Precision Automation

Description

Type:	Geared Stepper Motor	Rated Voltage:	12V
Step Angle:	7.5°	Gear Ratio:	1/30
Insulation Resistance:	100MΩ (MIN.)	Dielectric Strength:	600VAC 1mA 1S
Highlight:	35mm Geared Stepper Motor , 1:30 Ratio Geared Stepper Motor , Automation permanent magnet stepper motor

35mm Geared Stepper Motor 1:30 Ratio - Low Noise Permanent Magnet for Precision Automation

35mm Geared Stepper Motor with a 1:30 reduction ratio – a high-performance permanent magnet solution engineered for precision automation. Measuring 35mm in frame diameter, this compact yet robust motor fits seamlessly into mid-sized equipment setups, from automated workstations to intricate machinery. The 1:30 gear reduction ratio enhances torque output significantly, ensuring steady, vibration-free motion even when handling moderate loads, while its permanent magnet design delivers consistent power efficiency.​

Designed with low-noise operation as a key feature, it minimizes acoustic interference – critical for environments like laboratory automation, medical device assembly, or office-based precision conveyors. Whether integrated into robotic arms for precise part placement, automated assembly lines requiring tight positional control, or small-scale manufacturing equipment needing reliable speed regulation, this motor stands out. Its ability to maintain accurate step movements and stable stop positions under varying loads makes it a top choice for applications where precision and quiet performance are non-negotiable.​

Specifications

Product Name	Geared stepper motor
Model	35BY-11G
Resistance	100Ω ± 10%/ phase (25℃)
Current Per Phase	100 mA/phase(800PPS)
Max Starting Frequency	500 pps
Max Response Frequency	700 pps
Excitation Method	2-2 phase excitation
Drive Mode	Bipolar drive
Pull-out Thrust	More than 1000g at 100 pps
Insulation Class	Class F for one second
Insulation Strength	100 V AC for one second
Insulation Resistance	50 mΩ DC 500 V
Operating Temperature Range	-0~+ 55 ℃

Mechanical Dimension:MM

35mm Geared Stepper Motor Low Noise Permanent Magnet Stepper Motor For Precision Automation 0
