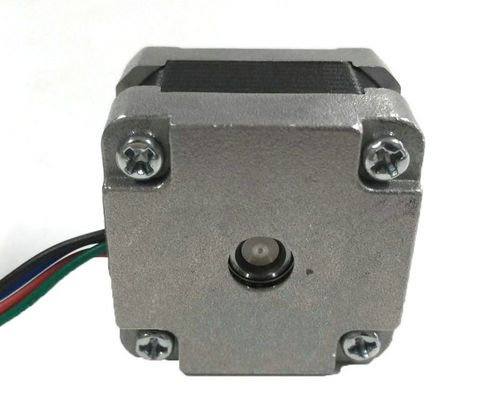

1.8° Step Angle NEMA 14 Stepper Motor 35mm Hybrid 4 Wire 1.5Kg.Cm Holding Torque

1.8° Step Angle NEMA 14 Stepper Motor 35mm Hybrid 4 Wire 1.5Kg.Cm Holding Torque
1.8° Step Angle NEMA 14 Stepper Motor 35mm Hybrid 4 Wire 1.5Kg.Cm Holding Torque 1.8° Step Angle NEMA 14 Stepper Motor 35mm Hybrid 4 Wire 1.5Kg.Cm Holding Torque

Large Image :  1.8° Step Angle NEMA 14 Stepper Motor 35mm Hybrid 4 Wire 1.5Kg.Cm Holding Torque

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 35BYGH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $5~10/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram,D/P
Supply Ability: 10000Units per month
Contact Now Chat Now

1.8° Step Angle NEMA 14 Stepper Motor 35mm Hybrid 4 Wire 1.5Kg.Cm Holding Torque

Description
Type: Hybrid Stepper Motor Step Angle: 1.8°
Phase: 2 Wire: 4-Lead
Body Size: 27mm/34mm/40mm Insulation Resistance: 100MΩ (MIN.)
Dielectric Strength: 600VAC 1mA 1S
Highlight:

Hybrid NEMA 14 Stepper Motor

,

35mm NEMA 14 Stepper Motor

,

1.5Kg.Cm 35mm Stepper Motor

1.8° Step Angle Stepper Motor – NEMA 14 (35mm), 4-Wire, 1.5Kg.cm Holding Torque

The 1.8° Step Angle Stepper Motor, a NEMA 14 (35mm) model with 4-wire design, delivers reliable performance with 1.5Kg.cm holding torque. Ideal for 3D printers, small CNC machines, and precision stages, it ensures accurate, consistent movement for detailed tasks. Its compact size and stable torque make it a go-to for applications needing precise step control.

Mechanical Dimension:MM

1.8° Step Angle NEMA 14 Stepper Motor 35mm Hybrid 4 Wire 1.5Kg.Cm Holding Torque 0

Typical Applications

  • 3D Printer
  • Monitoring Equipment
  • Medical Machinery
  • Vending Machine
  • Engineering Vehicle
  • CNC Engraving Machine
  • ATM Machine

 Technique Parameter

Item Specification
Step Angel 1.8°
Temperature Rise 80℃ max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100Ω Min.,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max.(450g-load)
Shaft Axial Play 0.08Max.(450g-load)



Specifications

Model No. Step Angle (°) Motor Length (mm) Current/Phase A Resistence /Phase Ω Industance /Phase mH Holding Torquue g.cm Leads No. Detent Torque g.cm Rotor Inertia g.cm² Weight Kg

35BYGH27

-0504

 1.8 27 0.5 10 14 1000 4 80 6 0.13

35BYGH34

-1004

 1.8 34 1 2 3 1200 4 110 9 0.17

35BYGH40

-1004

 1.8 40 1 2 4 1500 4 140 12 0.22



The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.
