NEMA34 Hybrid Stepper Motor 1.8 Degree 4 Wires 86mm Stepper Motor Insulation Resistance

NEMA34 Hybrid Stepper Motor 1.8 Degree 4 Wires 86mm Stepper Motor Insulation Resistance
NEMA34 Hybrid Stepper Motor 1.8 Degree 4 Wires 86mm Stepper Motor Insulation Resistance NEMA34 Hybrid Stepper Motor 1.8 Degree 4 Wires 86mm Stepper Motor Insulation Resistance NEMA34 Hybrid Stepper Motor 1.8 Degree 4 Wires 86mm Stepper Motor Insulation Resistance

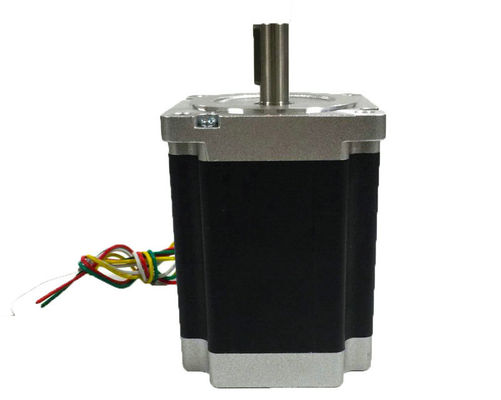

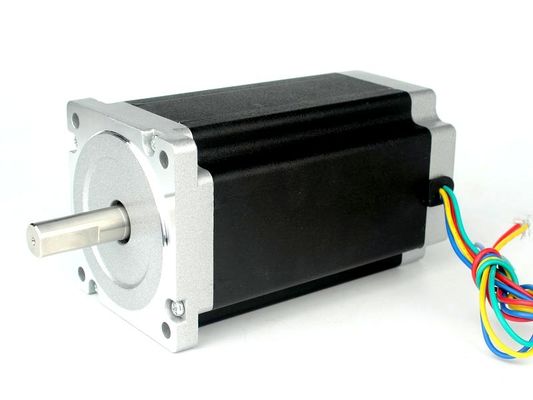

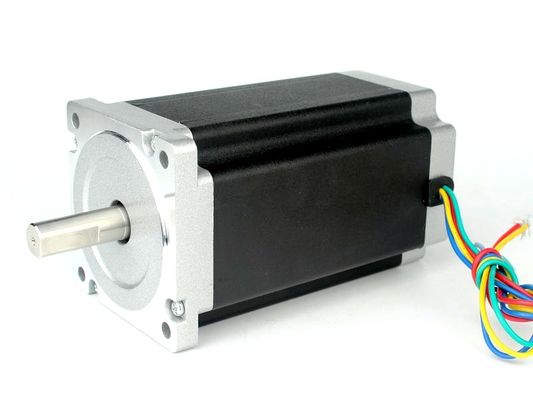

Large Image :  NEMA34 Hybrid Stepper Motor 1.8 Degree 4 Wires 86mm Stepper Motor Insulation Resistance

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 86BYGH
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $40~80/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000Units/month
Contact Now Chat Now

NEMA34 Hybrid Stepper Motor 1.8 Degree 4 Wires 86mm Stepper Motor Insulation Resistance

Description
Type: Hybrid Stepper Motor Step Angle: 1.8 Degree
Wires: 4 Insulation Resistance: 100MΩ (MIN.)
Dielectric Strength: 600VAC 1mA 1S
Highlight:

4 Wires Hybrid Stepper Motor

,

NEMA34 Hybrid Stepper Motor

,

4 Wires 86mm Stepper Motor

86mm Hybrid Stepper Motor 1.8 Degree NEMA34 4 Wires

Hybrid stepper motor is a combination of variable reluctance and permanent magnet motor. The stator is electromagnetically stimulated like variable reluctance stepper motor, and the rotor of the stepper motor is axially magnetized like permanent magnet stepper motor. This stepper motor is an actuator that converts electrical pulses into angular displacement.

Genaral Specification:

Item

Specifications

Step Angle

1.8°

Step Angle Accuracy

±5%(full step,no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)
Holding Torque

8.7N.m



Electrical Specification:



Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

 Holding Torque # of Leads Detent  Torque Rotor Inertia Mass
  ( °) (L)mm A Ω mH N.m No. Kg.cm g.cm Kg

86BYGH67-5904

1.8

67

5.9

0.28

1.7

3.4

4

0.8

1000

1.7

86BYGH67-2808

1.8

67

2.8

1.4

3.9

3.4

8

0.8

1000

1.7

86BYGH78-5504

1.8

78

5.5

0.46

4

4.6

4

1.2

1400

2.3

86BYGH78-4208

1.8

78

4.2

0.75

3.4

4.6

8

1.2

1400

2.3

86BYGH115-6004

1.8

115

6.0

0.6

6.5

8.7

4

2.4

2700

3.8

86BYGH115-4208

1.8

115

4.2

0.9

6

8.7

8

2.4

2700

 3.8



Mechanical Dimension:MM



NEMA34 Hybrid Stepper Motor 1.8 Degree 4 Wires 86mm Stepper Motor Insulation Resistance 0



Stepper Motor Applications

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
