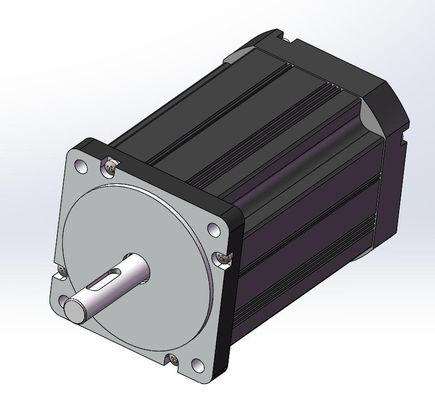

70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40

70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40
70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40

Large Image :  70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 70BLDC
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $30~100/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: ,T/T,Western Union,MoneyGram
Supply Ability: 1000Units/month
Contact Now Chat Now

70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40

Description
Type: Brushless DC Motor Rated Voltage: 12-48V
Winding Way: Star Insulation Class: B
Dielectric Strength: 600VDC 2mA 1S
Highlight:

10 Poles Brushless DC Motor

,

70mm Brushless DC Motor

,

3000RPM 24V BLDC Motor

BLDC motors can be controlled, using feedback mechanisms, to delivery precisely the desired torque and rotation speed. Precision control in turn reduces energy consumption and heat generation, and—in cases where motors are battery powered—lengthens the battery life.

General Technical parameters

item

parameter

Product Name

Brushless DC Motor

Winding Type

Star/ Triangle

Shaft diameter range

15mm (max.)

Hall Effect Angle

120°

Insulation Class

B

IP Level

IP40

Insulation Resistance

100MΩ Min.500VC DC

Dielectric Strength

600VAC 1 Minute

Ambient Temperature

-20℃~+50℃



Electrical Specification

Model

70BLDC

Number Of Phases

Phase

3

Number Of Poles

Poles

10

Rated Voltage

VDC

24

24

24

24

Rated Speed

Rpm

3000

3000

3000

3000

Rated Current

A

5.6

10.5

19.7

21

Rated Torque

N.m

0.3

0.6

1.2

1.2

Rated Power

W

95

190

380

380

Peak Torque

N.m

0.7

1.5

3

2.5

Torque Constant

N.m/A

0.054

0.057

0.060

0.057

Back EMF constant

V/kRPM

5.65

5.96

6.28

5.96

Body Length

mm

72

102

102

132

Weight

Kg

1.2

1.7

1.8

2.3



DIMENSIONS(UNIT mm)



70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40 0

 The above size is for reference only!



Customizable projects

Projects

Is customization available

Voltage

yes

Speed

yes

Power

yes

Shaft

yes

Cover

yes

Length

yes

wire

yes

control

yes

Optional accessory



70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40 1   70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40 2  70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40 3  70mm 10 Poles Brushless DC Motor 3000RPM High Torque 24V BLDC Motor IP40 4

Electromagnetic                Gear case                    Encoder                     Driver

 Brake



The method of wire connection

Yellow

(Thick)

Green

(Thick)

Blue

(Thick)

Red

(Thin)

Black

(Thin)

Yellow

(Thin)

Green

(Thin)

Blue

(Thin)

U

V

W

Vcc+5V

GND

Hu

Hv

Hw
