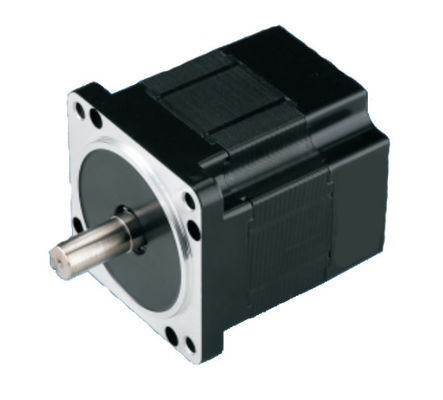

Nema 34 Brushless DC Motor 86mm 24v 8 Poles 3000RPM High Torque BLDC Motor

Nema 34 Brushless DC Motor 86mm 24v 8 Poles 3000RPM High Torque BLDC Motor
Nema 34 Brushless DC Motor 86mm 24v 8 Poles 3000RPM High Torque BLDC Motor

Large Image :  Nema 34 Brushless DC Motor 86mm 24v 8 Poles 3000RPM High Torque BLDC Motor

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 86BLDC
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $30~100/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000Units/month
Contact Now Chat Now

Nema 34 Brushless DC Motor 86mm 24v 8 Poles 3000RPM High Torque BLDC Motor

Description
Type: Brushless DC Motor Rated Voltage: 12-48V
Winding Way: Star Insulation Class: B
Dielectric Strength: 600VDC 2mA 1S
Highlight:

Nema 34 Brushless DC Motor

,

24v Brushless DC Motor

,

3000RPM High Torque BLDC Motor

BLDC motors can be controlled, using feedback mechanisms, to delivery precisely the desired torque and rotation speed. Precision control in turn reduces energy consumption and heat generation, and—in cases where motors are battery powered—lengthens the battery life.

General Technical parameters

item

parameter

Product Name

Brushless DC Motor

Winding Type

Star/Triangle

Hall Effect Angle

120°

Insulation Class

B

IP Level

IP40

Insulation Resistance

100MΩ Min.500VC DC

Dielectric Strength

600VAC 1 Minute

Ambient Temperature

-20℃~+50℃



Electrical Specification

Model

86BLDC

Number Of Phases

Phase

3

Number Of Poles

Poles

8

Rated Voltage

VDC

24

24

24

36

Rated Speed

Rpm

3000

3000

2000

2500

Rated Current

A

17

26

38

23

Rated Torque

N.m

0.955

1.5

3

3

Rated Power

W

300

470

650

785

Peak Torque

N.m

2.2

4

8

8

Torque Constant

N.m/A

0.056

0.058

0.078

0.13

Back EMF constant

V/kRPM

5.86

6.07

8.17

13.7

Body Length

mm

75

95

115

115

Weight

Kg

1.9

2.5

3

3



DIMENSIONS(UNIT mm)



Nema 34 Brushless DC Motor 86mm 24v 8 Poles 3000RPM High Torque BLDC Motor 0

The above size is for reference only!



Customizable projects

Projects

Is customization available

Voltage

yes

Speed

yes

Power

yes

Shaft

yes

Cover

yes

Length

yes

wire

yes

control

yes



Optional accessory



Nema 34 Brushless DC Motor 86mm 24v 8 Poles 3000RPM High Torque BLDC Motor 1    Nema 34 Brushless DC Motor 86mm 24v 8 Poles 3000RPM High Torque BLDC Motor 2    Nema 34 Brushless DC Motor 86mm 24v 8 Poles 3000RPM High Torque BLDC Motor 3     Nema 34 Brushless DC Motor 86mm 24v 8 Poles 3000RPM High Torque BLDC Motor 4

Electromagnetic                 Gear case                      Encoder                        Driver

 brake

The method of wire connection

Yellow

(Thick)

Green

(Thick)

Blue

(Thick)

Red

(Thin)

Black

(Thin)

Yellow

(Thin)

Green

(Thin)

Blue

(Thin)

U

V

W

Vcc+5V

GND

Hu

Hv

Hw



Tag:

Brushless Servo Motor,

Brushless DC Gearmotor,

Geared Brushless Motor
