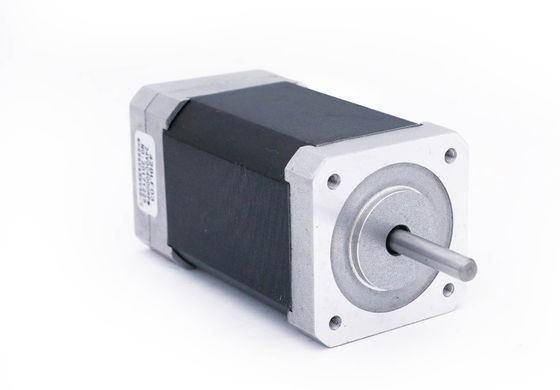

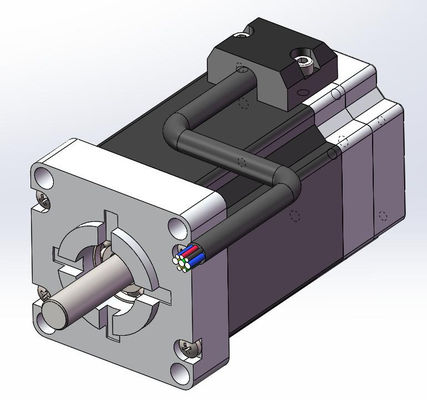

42mm Nema 17 Brushless DC Motor 8 Poles 24V 3Phase 3000RPM High Torque BLDC Electric Motor

42mm Nema 17 Brushless DC Motor 8 Poles 24V 3Phase 3000RPM High Torque BLDC Electric Motor
42mm Nema 17 Brushless DC Motor 8 Poles 24V 3Phase 3000RPM High Torque BLDC Electric Motor 42mm Nema 17 Brushless DC Motor 8 Poles 24V 3Phase 3000RPM High Torque BLDC Electric Motor

Large Image :  42mm Nema 17 Brushless DC Motor 8 Poles 24V 3Phase 3000RPM High Torque BLDC Electric Motor

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 42BLDC
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $20~50/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000Units/month
Contact Now Chat Now

42mm Nema 17 Brushless DC Motor 8 Poles 24V 3Phase 3000RPM High Torque BLDC Electric Motor

Description
Type: Brushless DC Motor Rated Voltage: 12-48V
Winding Way: Star Insulation Class: B
Dielectric Strength: 600VDC 2mA 1S
Highlight:

Nema 17 Brushless DC Motor

,

42mm Brushless DC Motor

,

8 Poles BLDC Electric Motor

BLDC motors can be controlled, using feedback mechanisms, to delivery precisely the desired torque and rotation speed. Precision control in turn reduces energy consumption and heat generation, and—in cases where motors are battery powered—lengthens the battery life.

General Technical parameters

projects

parameters

Product Name

Brushless DC Motor

Winding Type

Star

Shaft diameter range

8mm (max.)

Hall Effect Angle

120°

Insulation Class

B

IP Level

IP40

Insulation Resistance

100MΩ Min.500VC DC

Dielectric Strength

600VAC 2mA 1s

Ambient Temperature

-20℃~+50℃



Electrical Specification

Model

42BLDC

Number Of Phases

Phase

3

Number Of Poles

Poles

8

Rated Voltage

VDC

24

24

24

48

Rated Speed

Rpm

2000

2000

3000

4000

Rated Current

A

1.7

2.7

6

6.8

Rated Torque

N.m

0.15

0.25

0.35

0.35

Rated Power

W

30

50

110

150

Peak Torque

N.m

0.4

0.7

1

1

Torque Constant

N.m/A

0.076

0.089

0.06

0.09

Back EMF constant

V/kRPM

7.9

9.35

6.1

9.4

Body Length

mm

52.5

62.5

72.5

72.5

Weight

Kg

0.3

0.4

0.5

0.5



DIMENSIONS(UNIT mm)

42mm Nema 17 Brushless DC Motor 8 Poles 24V 3Phase 3000RPM High Torque BLDC Electric Motor 0

The above size is for reference only!



Customizable projects

Projects

Is customization available

Voltage

yes

Speed

yes

Power

yes

Shaft

yes

Cover

yes

Length

yes

wire

yes

control

yes

Optional accessory



42mm Nema 17 Brushless DC Motor 8 Poles 24V 3Phase 3000RPM High Torque BLDC Electric Motor 1      42mm Nema 17 Brushless DC Motor 8 Poles 24V 3Phase 3000RPM High Torque BLDC Electric Motor 2       42mm Nema 17 Brushless DC Motor 8 Poles 24V 3Phase 3000RPM High Torque BLDC Electric Motor 3          42mm Nema 17 Brushless DC Motor 8 Poles 24V 3Phase 3000RPM High Torque BLDC Electric Motor 4

Electromagnetic   Gear case           Encoder                   Driver

 brake
