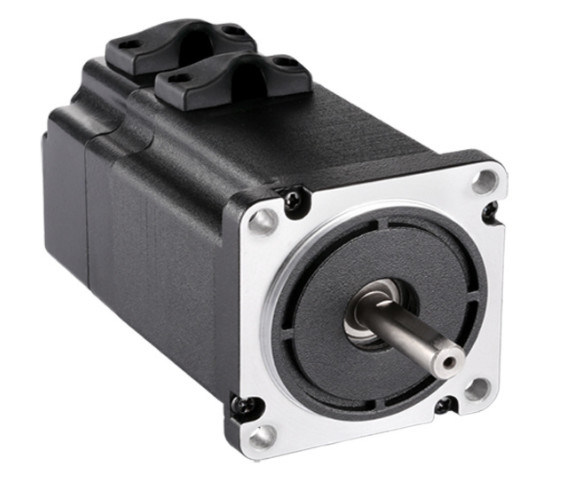

60mm 48V 8 Poles Brushless DC Gearmotor Customization Compact And Lightweight

60mm 48V 8 Poles Brushless DC Gearmotor Customization Compact And Lightweight
60mm 48V 8 Poles Brushless DC Gearmotor Customization Compact And Lightweight

Large Image :  60mm 48V 8 Poles Brushless DC Gearmotor Customization Compact And Lightweight

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 60BLDC
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $25~60/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000Units/month
Contact Now Chat Now

60mm 48V 8 Poles Brushless DC Gearmotor Customization Compact And Lightweight

Description
Type: Brushless DC Motor Rated Voltage: 12-48V
Winding Way: Star Insulation Class: B
Dielectric Strength: 600VDC 2mA 1S
Highlight:

60mm Brushless DC Gearmotor

,

8 Poles Brushless DC Gearmotor

,

Customization 48V BLDC Motor

60mm 24v or 48V 8 Poles Brushless Dc Motor 3000RPM High Torque

BLDC motors can be controlled, using feedback mechanisms, to delivery precisely the desired torque and rotation speed. Precision control in turn reduces energy consumption and heat generation, and—in cases where motors are battery powered—lengthens the battery life.

General Technical parameters

item

parameter

Product Name

Brushless DC Motor

Winding Type

Star/Triangular

Hall Effect Angle

120°

Insulation Class

B

IP Level

IP40

Insulation Resistance

100MΩ Min.500VC DC

Dielectric Strength

600VAC 1 Minute

Ambient Temperature

-20℃~+50℃



Electrical Specification

Model

60BLDC

Number Of Phases

Phase

3

Number Of Poles

Poles

8

10

Rated Voltage

VDC

24

24

48

48

Rated Speed

Rpm

3000

3000

2850

2850

Rated Current

A

4

10

7.8

7.8

Rated Torque

N.m

0.2

0.6

1

1

Rated Power

W

65

190

300

300

Peak Torque

N.m

0.6

1.7

2.5

2.5

Torque Constant

N.m/A

0.05

0.06

0.13

0.13

Back EMF constant

V/kRPM

6.3

6.3

13.4

13.4

Body Length

mm

64

85

106

87

Weight

Kg

0.8

1.2

1.6

1.3



DIMENSIONS(UNIT mm)

 60mm 48V 8 Poles Brushless DC Gearmotor Customization Compact And Lightweight 0

The above size is for reference only!



Customizable projects

Projects

Is customization available

Voltage

yes

Speed

yes

Power

yes

Shaft

yes

Cover

yes

Length

yes

wire

yes

control

yes

Optional accessory

60mm 48V 8 Poles Brushless DC Gearmotor Customization Compact And Lightweight 1  60mm 48V 8 Poles Brushless DC Gearmotor Customization Compact And Lightweight 2  60mm 48V 8 Poles Brushless DC Gearmotor Customization Compact And Lightweight 3  60mm 48V 8 Poles Brushless DC Gearmotor Customization Compact And Lightweight 4

Electromagnetic              Gear case                   Encoder                       Driver


 brake
