57mm 36V 8 Pole Brushless Servo Motor 3000RPM Stable And Safety Operation

57mm 36V 8 Pole Brushless Servo Motor 3000RPM Stable And Safety Operation
57mm 36V 8 Pole Brushless Servo Motor 3000RPM Stable And Safety Operation 57mm 36V 8 Pole Brushless Servo Motor 3000RPM Stable And Safety Operation

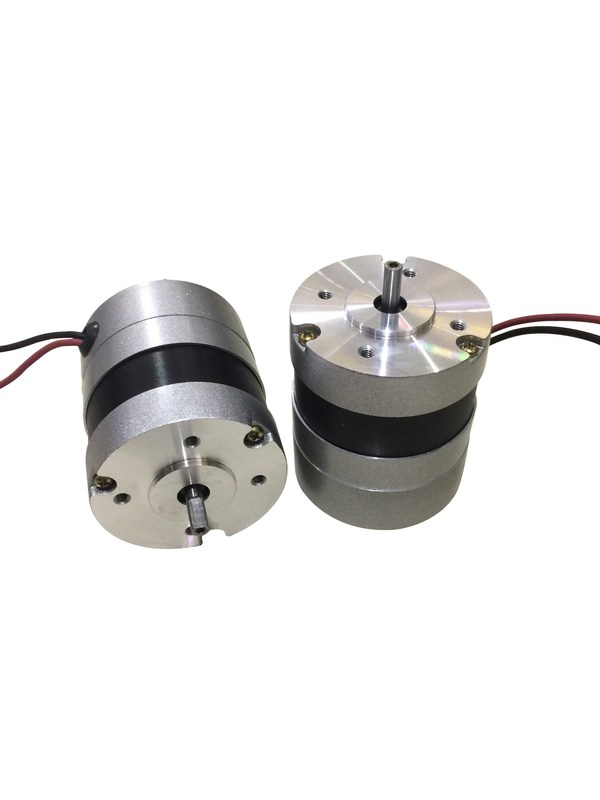

Large Image :  57mm 36V 8 Pole Brushless Servo Motor 3000RPM Stable And Safety Operation

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: Rohs
Model Number: 57BLDC
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: Negotiate
Packaging Details: Carton with Inner Foam Box, Pallet
Delivery Time: 15-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000 Units/MONTH
Contact Now Chat Now

57mm 36V 8 Pole Brushless Servo Motor 3000RPM Stable And Safety Operation

Description
Type: Brushless DC Motor Rated Voltage: 12-48V
Winding Way: Star Insulation Class: B
Dielectric Strength: 600VDC 2mA 1S
Highlight:

36V Brushless Servo Motor

,

8 Pole Brushless Servo Motor

,

Safety Brushless Electric Motor

BLDC motors can be controlled, using feedback mechanisms, to delivery precisely the desired torque and rotation speed. Precision control in turn reduces energy consumption and heat generation, and—in cases where motors are battery powered—lengthens the battery life.

General Technical parameters

item

parameter

Product Name

Brushless DC Motor

Winding Type

Star

Hall Effect Angle

120°

Insulation Class

B

IP Level

IP40

Insulation Resistance

100MΩ Min.500VC DC

Dielectric Strength

600VAC 1 Minute

Ambient Temperature

-20℃~+50℃



Electrical Specification

Model 57BLDC
Number Of Phases Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 24 24 24 36
Rated Speed Rpm 2000 3000 3000 3000
Rated Current A 2 5 7 7
Rated Torque N.m 0.15 0.25 0.4 0.65
Rated Power W 30 80 125 200
Peak Torque N.m 0.45 0.7 0.54 0.66
Torque Constant N.m/A 0.075 0.050 0.057 0.093
Back EMF constant V/kRPM 7.9 5.3 6 9.7
Body Length mm 50 70 90 110
Weight Kg 0.5 0.7 0.9 1.1

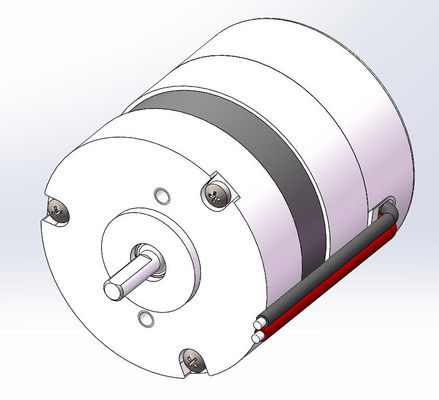

DIMENSIONS(UNIT mm)

57mm 36V 8 Pole Brushless Servo Motor 3000RPM Stable And Safety Operation 0

The above size is for reference only!
