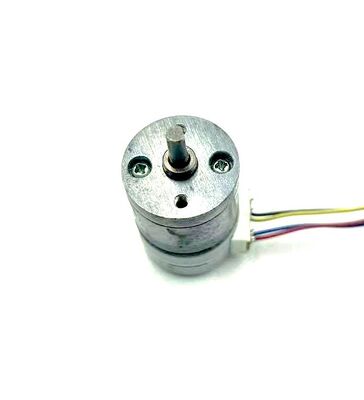

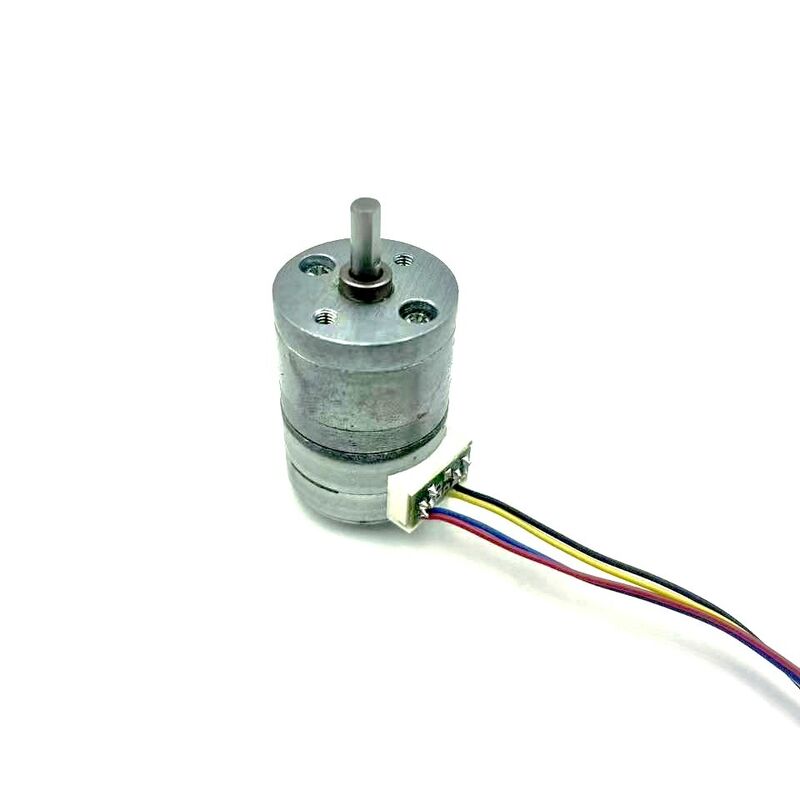

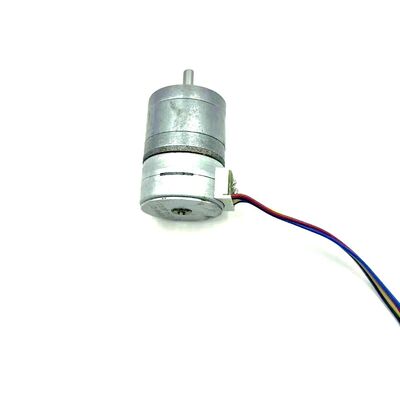

25BY High Torque 25mm Gearbox Stepper Motor For Industrial Automation

Large Image : 25BY High Torque 25mm Gearbox Stepper Motor For Industrial Automation

Product Details:

Place of Origin:	China
Brand Name:	WEIGU
Certification:	RoHS
Model Number:	25BY-50G

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Price:	$4.5~7/unit
Packaging Details:	Standard export package, or can be customized
Delivery Time:	7-30 work days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	10000Units/month

Contact Now Chat Now

25BY High Torque 25mm Gearbox Stepper Motor For Industrial Automation

Description

Type:	Geared Stepper Motor	Rated Voltage:	5-24V
Step Angle:	7.5°、15°	Gear Ratio:	1/10,1/30,1/60,1/75,1/100
Insulation Resistance:	100MΩ (MIN.)	Dielectric Strength:	600VAC 1mA 1S
Highlight:	25mm high torque stepper motor , industrial automation geared stepper motor , 25BY gearbox stepper motor

The PM25 25mm Reduction Stepper Motor redefines precision engineering for industrial and medical devices. Its core advantage lies in subdivided step angles (via integrated gearbox) and 5 optimized reduction ratios (10–100), delivering amplified load torque and unmatched control accuracy—critical for applications like welding machines, blood analyzers, and fiber fusion splicers. Measuring just 25mm in diameter with a 15mm motor length and four gearbox options (16.0mm–20.5mm), it balances compactness with power.

Operating at 5V–24V, it offers speeds from 10rpm to 500rpm, adapting to slow, precise movements or high-speed workflows. Built with ROHS materials, it’s energy-efficient, low-noise, and low-heat, with a lightweight design for easy installation. What sets it apart? Under non-overloaded, interference-free conditions, its speed and stop position are strictly pulse-controlled—immune to load fluctuations, guaranteeing consistent results. With a motor service life of >10,000 hours and gear life of >2,000 hours, it’s a durable choice for intelligent security products, digital electronics, and saliva analyzers.

Specifications

Product Name	Geared stepper motor
Model	25BY-50G
Resistance	10 Ω ± 10%/ phase (25℃)
Current Per Phase	100 mA/phase(800PPS)
Max Starting Frequency	800 pps
Max Response Frequency	1000 pps
Excitation Method	2-2 phase excitation
Drive Mode	Bipolar drive
Pull-out Thrust	More than 1490g at 200 pps
Insulation Class	Class F for one second
Insulation Strength	100 V AC for one second
Insulation Resistance	50 mΩ DC 500 V
Operating Temperature Range	-0~+ 55 ℃

Mechanical Dimension:MM
