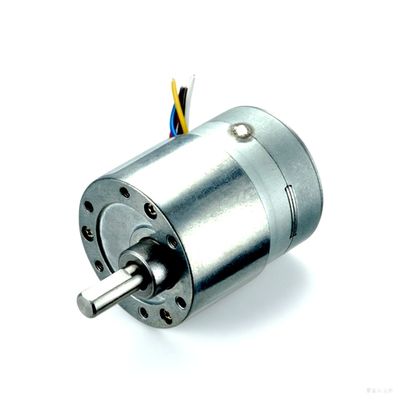

GM37-35BY 35mm Stepper Motor 5 Wire 7.5° Step Angle High Torque For Industrial Automation

GM37-35BY 35mm Stepper Motor 5 Wire 7.5° Step Angle High Torque For Industrial Automation
GM37-35BY 35mm Stepper Motor 5 Wire 7.5° Step Angle High Torque For Industrial Automation

Large Image :  GM37-35BY 35mm Stepper Motor 5 Wire 7.5° Step Angle High Torque For Industrial Automation

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 35BY-88G
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $5~10/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000Units/month
Contact Now Chat Now

GM37-35BY 35mm Stepper Motor 5 Wire 7.5° Step Angle High Torque For Industrial Automation

Description
Type: Gearbox Stepper Motor Rated Voltage: 5-24V
Step Angle: 7.5° Reduction Ratio: 1:6-1:800
Insulation Resistance: 100MΩ (MIN.) Dielectric Strength: 600VAC 1mA 1S
Highlight:

GM37-35BY 35mm Stepper Motor

,

7.5° Step 35mm Stepper Motor

,

Industrial Automation two phase stepper motor

GM37-35BY 35mm Geared Stepper – 2 Phase 4/5 Wire, 7.5° Step Angle for High Torque Automation

The PM35 reduction stepper motor redefines compact precision. Its 35mm diameter houses a 15mm motor and modular 19–26.5mm gearboxes, adapting to tight spaces in industrial robotics or IoT devices. A 5V - 24V range powers 10–500rpm speeds, with pulse - based control that ignores load changes (no EMI, no overload) for rock - solid stability.
Made with ROHS materials, it’s eco - friendly, low - noise, and torque - customizable—perfect for noise - sensitive environments like dental equipment. The gearbox’s 6–270 reduction ratios fine - tune step angles, amplifying torque for precision tasks (e.g., optical alignment). With a 10,000+ hour motor life and 2,000+ hour gear endurance, plus easy installation, it merges cutting - edge tech with practical durability for modern automation challenges.



Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Specifications

Product Name

Geared stepper motor

Model

35BY-88G

Resistance

10.5 Ω ± 10%/ phase (25℃)

reduction ratios

1:50

Current Per Phase

100 mA/phase(800PPS)

Max Starting Frequency

600 pps

Max Response Frequency

800 pps

Excitation Method

2-2 phase excitation

Drive Mode

Bipolar drive

Pull-out torque

More than 300mN.m at 700 pps

Insulation Class

Class E for one second

Insulation Strength

100 V AC for one second

Insulation Resistance

50 mΩ DC 500 V

Operating Temperature Range

-0~+ 55 ℃



Gearbox Ratio Datasheet

Number of Stages

2

3

4

5

6

Gear Ratio

6

19

40

131

500

10

30

50

169

800


90

270



Length of Gearbox(mm)

19

21.5

24

26.5

29



Mechanical Dimension:MM



GM37-35BY 35mm Stepper Motor 5 Wire 7.5° Step Angle High Torque For Industrial Automation 0
