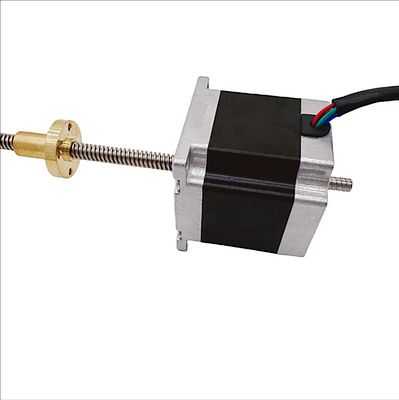

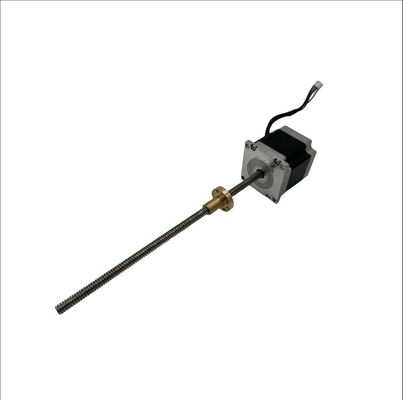

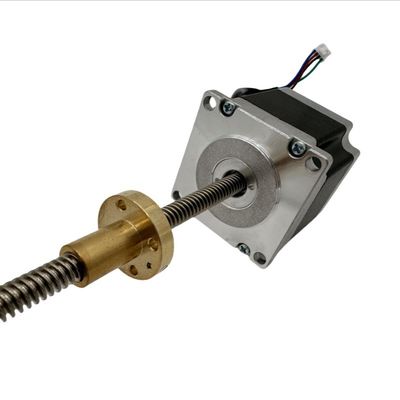

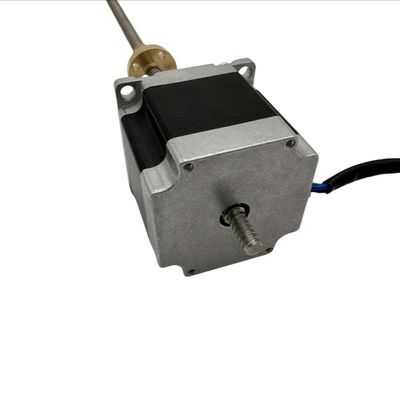

NEMA14 35mm Linear Stepper Motor Hybrid Stepper Motor With 0.6096 Mm Pitch 1.8°

NEMA14 35mm Linear Stepper Motor Hybrid Stepper Motor With 0.6096 Mm Pitch 1.8°
NEMA14 35mm Linear Stepper Motor Hybrid Stepper Motor With 0.6096 Mm Pitch 1.8° NEMA14 35mm Linear Stepper Motor Hybrid Stepper Motor With 0.6096 Mm Pitch 1.8° NEMA14 35mm Linear Stepper Motor Hybrid Stepper Motor With 0.6096 Mm Pitch 1.8° NEMA14 35mm Linear Stepper Motor Hybrid Stepper Motor With 0.6096 Mm Pitch 1.8°

Large Image :  NEMA14 35mm Linear Stepper Motor Hybrid Stepper Motor With 0.6096 Mm Pitch 1.8°

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 35BYGH-TR
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $45~65/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000Units/month
Contact Now Chat Now

NEMA14 35mm Linear Stepper Motor Hybrid Stepper Motor With 0.6096 Mm Pitch 1.8°

Description
Type: Linear Stepper Motor Rated Voltage: 5-24V
Screw: TR6 - TR8 Leads: 4
Step Angle: 1.8° Insulation Resistance: 100MΩ (MIN.)
Dielectric Strength: 600VAC 1mA 1S
Highlight:

NEMA14 Linear Stepper Motor

,

35mm Linear Stepper Motor

,

0.6096 Mm Pitch Hybrid Stepper Motor

NEMA14 35mm hybrid linear stepper motor with 0.6096 mm pitch high precision lead screw 1.8°

This is a 35mm size (NEMA11) hybrid stepper motor with lead screw and nut. The lead screw is 0.6096 mm pitch single start, 0.003mm step length. (Step length means linear distance nut travels when the motor takes one full step).

Screw lead is related to motor’s linear speed, and nut’s thrust.

If customers require higher speed on the nut, we can replace with longer screw lead. But motor’s thrust/pushing force will be lower.

It depends on customers want more thrust or higher speed.

Motor’s height is 33mm, and it’s related to motor’s torque, with bigger height, motor’s torque is higher.

Please confirm your required linear speed and thrust, before you order motor samples, we will recommend suitable motors with suitable lead screw type based on your requirement.

Parameter sheet:

Motor type Hybrid stepper motor
Motor size 35mm (NEMA14)
Step angle 1.8°/step
Step length 0.003mm/step
Phase No. 2 phases
Phase resistance 1.8Ω±10%
Lead screw type P0.6096*1N
Lead scew length 55mm (Adjustable)

Screw rod Specification of lead screw:



Lead screw diameter(mm) Screw Lead (mm) Screw pitch(mm) Travel per step(mm) Lead Screw Diameter(mm) Screw Lead(mm) Screw Pitch(mm) Travel per step(mm)

TR8



 1 1 0.005

Tr6

2

1

0.01
2 2 0.1



4

1

0.02
3 1.5 0.015



6

1

0.03
4 2 0.02



12

2

0.06
8 2 0.04








10 2 0.05
12 2 0.06




Tag:

Hybrid Stepper Motor,

Lead Screw Motor,

Screw Stepper Motor
