28mm Nema11 Linear Stepper Motor Lead Screw Motor 24V With Screw TR5 1.8°

28mm Nema11 Linear Stepper Motor Lead Screw Motor 24V With Screw TR5 1.8°
28mm Nema11 Linear Stepper Motor Lead Screw Motor 24V With Screw TR5 1.8° 28mm Nema11 Linear Stepper Motor Lead Screw Motor 24V With Screw TR5 1.8° 28mm Nema11 Linear Stepper Motor Lead Screw Motor 24V With Screw TR5 1.8°

Large Image :  28mm Nema11 Linear Stepper Motor Lead Screw Motor 24V With Screw TR5 1.8°

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 28BYGH-TR
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $45~80/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000Units/month
Contact Now Chat Now

28mm Nema11 Linear Stepper Motor Lead Screw Motor 24V With Screw TR5 1.8°

Description
Type: Linear Stepper Motor Rated Voltage: 5-24V
Screw: TR3.5 - TR6 Leads: 4
Step Angle: 1.8° Insulation Resistance: 100MΩ (MIN.)
Dielectric Strength: 600VAC 1mA 1S
Highlight:

Nema11 Linear Stepper Motor

,

24V Linear Stepper Motor

,

TR5 Lead Screw Motor

Nema11 28mm Linear Stepper Motor with Screw TR5 1.8°

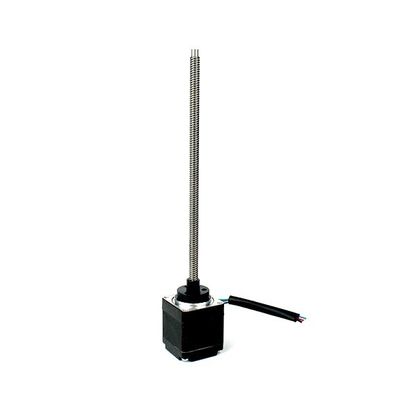

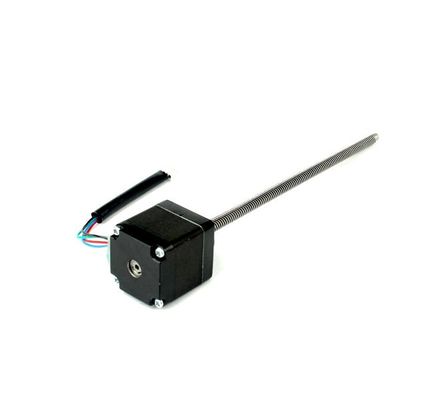

This is a 28mm size (NEMA11) hybrid stepper motor with lead screw and nut. The lead screw is 0.6096 mm pitch single start, 0.003mm step length. (Step length means linear distance nut travels when the motor takes one full step).

Screw lead is related to motor’s linear speed, and nut’s thrust.

If customers require higher speed on the nut, we can replace with longer screw lead. But motor’s thrust/pushing force will be lower.

It depends on customers want more thrust or higher speed.

Motor’s height is 33mm, and it’s related to motor’s torque, with bigger height, motor’s torque is higher.

Please confirm your required linear speed and thrust, before you order motor samples, we will recommend suitable motors with suitable lead screw type based on your requirement.

Electrical Specification of nema 11 linear stepper motor:

Model No.

Step Angle



Motor Length

Current

/Phase



Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Rotor Inertia

Motor

Weight



( °)

(L)mm

A

Ω

mH

g.cm

No.

g.cm^2

Kg

28BYGH32-0424

1.8

32

0.4

11.9

6.7

600

4

9

0.11

28BYGH32-0504

1.8

32

0.5

11.4

7.4

600

4

9

0.11

28BYGH32-0674

1.8

32

0.67

5.6

3.4

600

4

9

0.11



Screw rod Specification of lead screw:



Screw Diameter(mm) Screw Lead(mm) Screw Pitch(mm) Travel per step(mm) Screw Diameter(mm) Screw Lead(mm) Screw Pitch(mm) Travel per step(mm)

Tr3.5

1

1

0.005

Tr6

2

1

0.01



0.6096

0.6096

0.003



4

1

0.02



2.4384

1.2192

0.0122



6

1

0.03

Tr5

1

1

0.005



12

2

0.06



2

1

0.01
