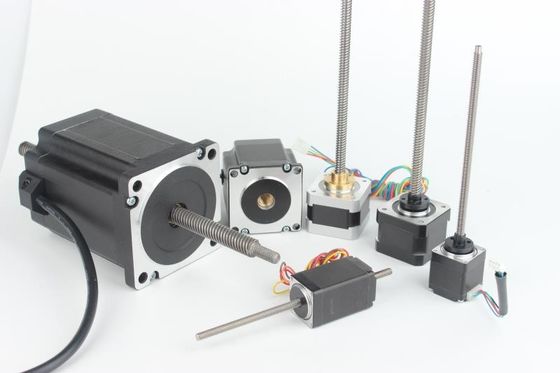

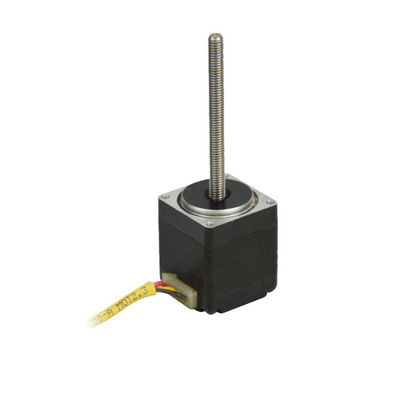

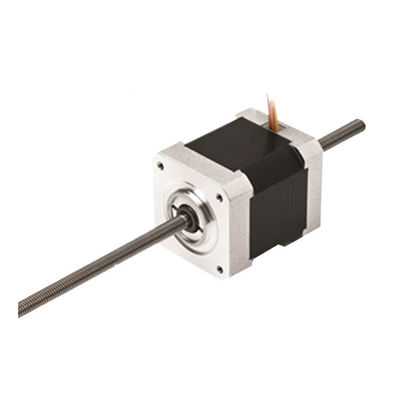

NEMA 17 Linear Lead Screw Hybrid Stepper Motor 42mm Diameter With POM Brass Nut

NEMA 17 Linear Lead Screw Hybrid Stepper Motor 42mm Diameter With POM Brass Nut
NEMA 17 Linear Lead Screw Hybrid Stepper Motor 42mm Diameter With POM Brass Nut NEMA 17 Linear Lead Screw Hybrid Stepper Motor 42mm Diameter With POM Brass Nut NEMA 17 Linear Lead Screw Hybrid Stepper Motor 42mm Diameter With POM Brass Nut

Large Image :  NEMA 17 Linear Lead Screw Hybrid Stepper Motor 42mm Diameter With POM Brass Nut

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 42HS40
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: $20~50/unit
Packaging Details: Standard export package in corrugated carton (Mass production).
Delivery Time: 15-30 work days
Payment Terms: T/T,D/P,Western Union,MoneyGram
Supply Ability: 100000 Units/year
Contact Now Chat Now

NEMA 17 Linear Lead Screw Hybrid Stepper Motor 42mm Diameter With POM Brass Nut

Description
Type: Hybrid Linear Stepper Motor Step Angle: 1.8°
Shaft Type: Tr8 Lead Screw Pitch: 2mm
Insulation Resistance: 100MΩ (MIN.) Dielectric Strength: 600VAC 1mA 1S
Highlight:

NEMA 17 Hybrid Stepper Motor

,

POM Brass Nut Hybrid Stepper Motor

,

42mm Diameter lead screw servo motor

NEMA17 Linear Lead Screw Hybrid Stepper Motor 42mm With POM Brass Nut

This is 42mm hybrid linear stepper motor with lead screw.(NEMA 17)
Output shaft is TR8 (8mm diameter trapezoidal screw) and it has different pitch and lead.

Motor's travel distance, and thrust is determined by motor's lead.

We have different options for you to choose.

Lead screw length is customizable

Also we provide nut to match with lead screw. POM and brass nut are both optional.



Typical applications:

* Medical Equipment

* Linear Robotic Control

* Precision Calibration

* High Precision Valve

* Other Precise Position Movement



Plus tt has extra low noise and high stability.



Design Layout (Unit:mm)

NEMA 17 Linear Lead Screw Hybrid Stepper Motor 42mm Diameter With POM Brass Nut 0

Parameter sheet:

Model No. 42BYGH40
Motor type Linear hybrid stepper motor
Motor size 42mm * 40mm (Width*height)
Lead screw type trapezoidal screw
Lead screw length Adjustable
Nut material POM / brass



Lead screw diameter Screw Lead (mm) Screw pitch(mm) Travel per step(mm)

TR8

(8mm)

 1 1 0.005
2 2 0.1
3 1.5 0.015
4 2 0.02
8 2 0.04
10 2 0.05
12 2 0.06
14 2 0.07
