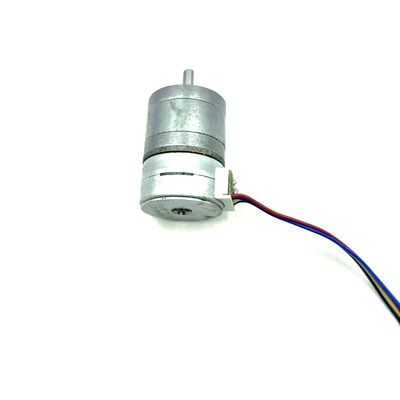

Product Description:
The Reduction Stepper Motor is a high-performance Gearbox Stepper Motor designed to deliver precise control and reliable operation in various applications. Featuring a coil resistance of 90Ω per phase, this motor ensures efficient current management and optimal power consumption, making it an excellent choice for projects requiring fine-tuned motion control. The motor operates at a voltage of 12V DC, allowing for compatibility with a wide range of standard power supplies and control systems.
One of the standout features of this Geared Stepper Motor is its gear ratio of 1:10. This reduction ratio significantly enhances the motor's output torque while maintaining accurate positioning capabilities. By incorporating a gearbox into the design, the motor achieves smoother and more precise movements, which are essential in applications such as robotics, CNC machines, and automated equipment. The gear reduction also helps to reduce the motor's speed, allowing for better control over slow, deliberate movements without sacrificing power.
With a holding torque of 1.0 Nm, this Geared Stepper Motor provides substantial force to hold its position firmly under load. This high holding torque is particularly beneficial in applications where the motor must resist external forces or maintain a fixed position for extended periods. Whether it is used in a robotic arm, a precision positioning system, or a small conveyor mechanism, the motor’s torque capabilities ensure stable and reliable performance.
Weighing only 300 grams, the Reduction Stepper Motor is lightweight and compact, making it easy to integrate into tight spaces without adding significant bulk or weight. This lightweight design does not compromise durability or strength, as the motor is built with quality materials to withstand regular use and environmental stresses. Its compact form factor combined with powerful performance makes it ideal for both hobbyist projects and professional industrial applications.
The Geared Stepper Motor’s combination of a 12V DC operating voltage, 90Ω coil resistance, and 1:10 gear reduction ratio offers a balanced solution for users seeking both precision and power. The gear reduction system enhances the motor’s torque output while enabling finer control over movement increments, translating to smoother operation and more accurate positioning. This makes the motor especially suitable for tasks requiring meticulous adjustment and consistent repeatability.
Moreover, the integrated gearbox not only boosts performance but also protects the motor by reducing the mechanical load on the stepper motor itself. This leads to improved longevity and reliability, as the motor experiences less strain during operation. The efficient design of the Reduction Stepper Motor ensures minimal maintenance requirements and extended service life, providing excellent value over time.
In summary, the Reduction Stepper Motor is a versatile and dependable Gearbox Stepper Motor that excels in delivering high holding torque, precise motion control, and efficient power usage. Its 1:10 gear ratio, combined with a 12V DC voltage and 90Ω coil resistance, makes it a perfect fit for a wide array of applications, from robotics and automation to CNC machinery and beyond. Lightweight yet powerful, this Geared Stepper Motor provides users with the performance and reliability needed to achieve optimal results in demanding environments.
Applications:
The Reduction Stepper Motor is an essential component widely used in various applications due to its precise control and high torque output. Featuring a step angle of 1.8 degrees, this motor offers exceptional accuracy in positioning, making it ideal for scenarios where precise movements are critical. The motor operates with a 4-phase configuration and is equipped with a 4-pin JST connector, ensuring reliable electrical connections and easy integration into different control systems.
One of the most common application occasions for this Gearbox Stepper Motor is in automation and robotics. The gear reduction mechanism enhances torque while reducing the speed, allowing the motor to handle heavier loads with greater efficiency. This makes it suitable for robotic arms, CNC machines, and automated conveyor systems where controlled motion and stability are paramount. The Gear Reduction Motor’s ability to provide smooth and consistent movement also benefits 3D printers and camera gimbals, where fine adjustments are necessary.
In industrial settings, the DC Reduction Motor is often employed in precision instrumentation and measurement devices. Its coil resistance of 90Ω per phase ensures energy-efficient operation while maintaining strong electromagnetic performance. The motor’s robust design supports operating temperatures ranging from -20°C to 50°C, enabling it to function reliably in diverse environments, including cold storage facilities and moderately heated industrial plants.
Additionally, this Reduction Stepper Motor is used in medical equipment such as infusion pumps and diagnostic machines. The precise step angle and smooth torque control contribute to accurate dosing and sensitive instrument handling. The compact size and standardized 4-pin JST connector facilitate easy installation and maintenance in such critical applications.
Other scenarios include office automation devices like printers, scanners, and fax machines, where the Gearbox Stepper Motor ensures precise paper feeding and positioning. Hobbyist projects and educational kits also benefit from the motor’s straightforward control and durability, allowing users to experiment with robotics and automation on a smaller scale.
Overall, the combination of a 1.8-degree step angle, 4-phase operation, 4-pin JST connector, 90Ω coil resistance, and a wide operating temperature range makes this Reduction Stepper Motor a versatile and reliable choice across a broad spectrum of applications. Whether used as a Gearbox Stepper Motor, Gear Reduction Motor, or DC Reduction Motor, it delivers consistent performance in precision-driven tasks and demanding environments alike.
Customization:
Our Reduction Stepper Motor product can be customized to meet your specific requirements. With a holding torque of 1.0 Nm and an operating temperature range from -20°C to 50°C, this Gearbox Stepper Motor is designed for reliable performance in various environments. The motor delivers a torque of 0.5 Nm and features 2 phases, ensuring precise control and smooth operation. Weighing only 300 grams, this Gear Reduction Motor is compact and efficient. Whether you need a Geared Stepper Motor for industrial automation or robotics, we offer tailored solutions to optimize your application.
Support and Services:
Our Reduction Stepper Motor product is designed to provide precise control and high torque in a compact form factor. For optimal performance, ensure proper installation according to the provided guidelines, including correct wiring and alignment with the load.
Regular maintenance is recommended to extend the motor's lifespan and maintain efficiency. This includes periodic inspection of the motor and gearbox for signs of wear or damage, lubrication of moving parts as specified, and verification of electrical connections.
Should you encounter any technical issues, refer to the troubleshooting section in the user manual for common problems and solutions. Our technical support team is available to assist with advanced troubleshooting, configuration advice, and application recommendations to help you achieve the best results with your Reduction Stepper Motor.
We also offer a range of services including motor customization, repair, and replacement parts to support your specific needs. For detailed service options and support policies, please consult the product documentation or visit our support website.
Ensuring compatibility with your control system and load requirements is crucial; please verify specifications before integration. Our experts can provide guidance on selecting the appropriate motor model and reduction ratio for your application.
FAQ:
Q1: What is a Reduction Stepper Motor?
A Reduction Stepper Motor is a type of stepper motor equipped with a built-in gearbox that reduces the motor's output speed while increasing its torque. This makes it ideal for applications requiring precise positioning and higher torque at lower speeds.
Q2: What are the common applications of a Reduction Stepper Motor?
Reduction Stepper Motors are commonly used in robotics, CNC machines, 3D printers, automation systems, and other precision control devices where enhanced torque and accurate positioning are essential.
Q3: How does the gear reduction ratio affect the motor’s performance?
The gear reduction ratio determines the amount of speed reduction and torque increase. A higher reduction ratio means lower output speed but higher torque, allowing for more precise control and better handling of heavy loads.
Q4: What are the typical operating voltages and currents for this motor?
Typical Reduction Stepper Motors operate within voltages ranging from 5V to 24V and current ratings between 0.5A and 2A, depending on the specific model and application requirements.
Q5: Can the Reduction Stepper Motor be controlled with standard stepper motor drivers?
Yes, Reduction Stepper Motors can generally be controlled using standard stepper motor drivers. However, it is important to ensure the driver specifications match the motor’s voltage and current ratings for optimal performance.
