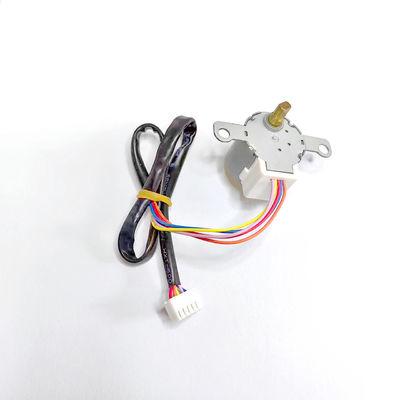

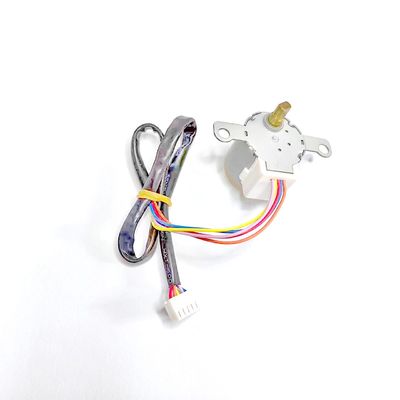

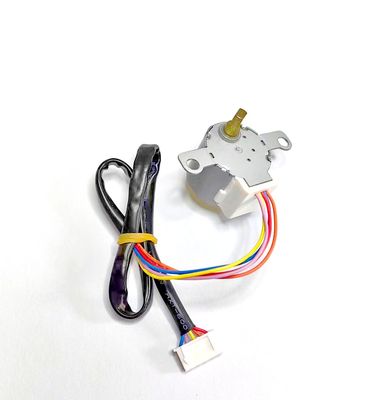

24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio

24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio
24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio 24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio 24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio

Large Image :  24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 24BYJ48
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $0.75~2/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,D/P,Western Union,MoneyGram
Supply Ability: 100000Units/month
Contact Now Chat Now

24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio

Description
Type: Stepper Reduction Motor Phase No.: 4 Phases
Rated Voltage: 12V Gear Ratio: 1/64
Step Angle: 5.625 Insulation Resistance: 100MΩ (MIN.)
Dielectric Strength: 600VAC 1mA 1S
Highlight:

24mm 5 Wire Stepper Motor

,

Air Conditioner 5 Wire Stepper Motor

,

24BYJ48 gear stepper motor

24mm 24BYJ48 12V geared reducer stepping motor for Air conditioner 1:64 Reduction ratio

This 24mm permanent magnet stepper motor includes a gearbox with adjustable ratios. As a unipolar 4-phase, 5-wire motor, it delivers reliable precision.​
Key : extensive customization. Choose gear ratios (16:1 to 64:1), coil resistance, phase number, or connectors to fit your needs. It integrates easily into DIY projects or industrial setups.​
Compact at 24mm, its permanent magnet design ensures consistent torque and smooth operation. Ideal for standard or custom configurations.

Customization options:

Model No.: 24BYJ48

Step angle:(1-2phase driving) 5.625°/64; (2-2 phase driving) 11.25°/step

Gear ratio: 64:1

Customizable items:

Voltage:12V; gear ratio, gear material, output shaft, motor’s cap design customizable



Voltage

(V)

Resistance

(Ω)

Pull-in torque

100PPS

(mN*m)

Detent Torque

(mN*m)

Unload pull-in

Frequency

(PPS)
12 60 ≥117 ≥29.4 ≥500
12 70 ≥68.7 ≥29.4 ≥500
12 200 ≥68.7 ≥29.4 ≥500



Design drawing(Unit:mm)

24mm 5 Wire Stepper Motor 24BYJ48 12V For Air Conditioner Reduction Ratio 0







Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
