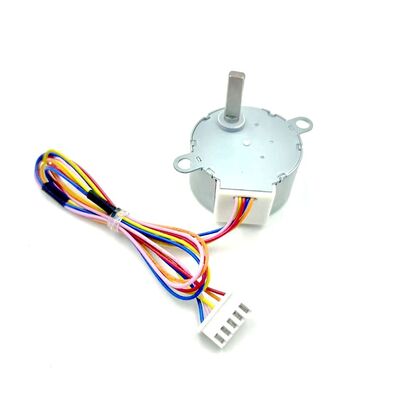

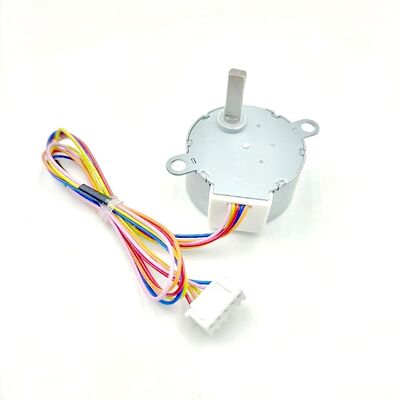

35mm Diameter Reduction Stepper Motor 35BYJ46 Geared Stepper Motor 85:1 Ratio 7.5 Degree Step Angle

35mm Diameter Reduction Stepper Motor 35BYJ46 Geared Stepper Motor 85:1 Ratio 7.5 Degree Step Angle

This is a 35mm stepper motor with 4 cables (4 phases)

It has a gearbox inside, and the ratio is 85:1.

This motor can be used in household appliances or other electrical products.

The driving voltage is 12V DC, which is related motor’s coil resistance.

The motor’s resistance, shaft design, also cable length and connector type are all customizable.

Customer can change the parameters based on own design requirement.

Specifications

Technical Features

Application                                                                Highlights

HVAC/R Valve Actuation                                           Winding possibilities – Bipolar

Office Automation Printers, Copiers, Data storage   Maintenance free - motor is brushless

Medical Applications Pill dispensing Analysers        Cost effective - compact design, lower integration cost

Other Industries & Applications Robotics                 Digitally controlled - Easy to use with a micro processor

Telecommunication Antennae positioning                Switching lines Open loop control - No encoders necessary

Mechanical Dimension: mm
