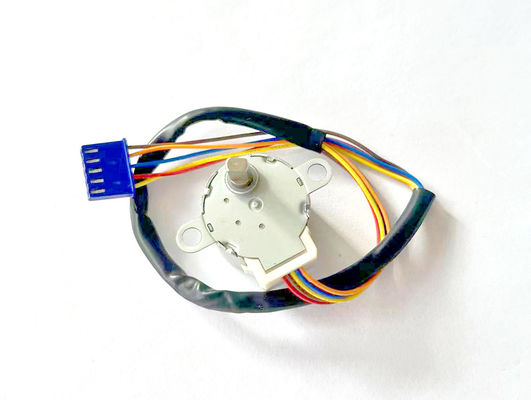

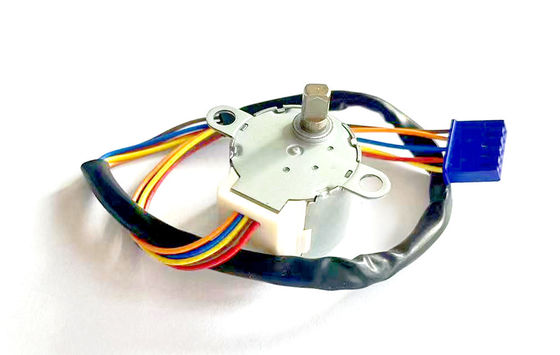

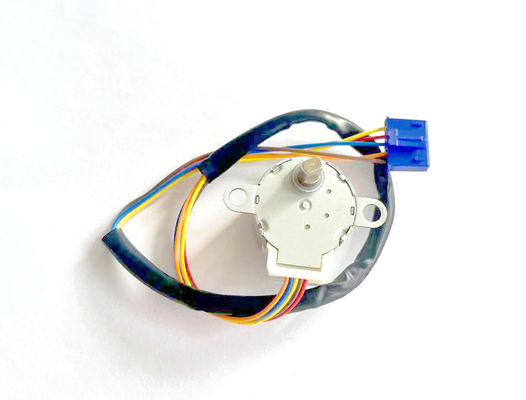

24mm 4-Phase Geared Reducer Stepper Motor 24BYJ48 24V High-Torque 5.625°stepping angle
This 24mm diameter permanent magnet stepper motor features a high-performance gearbox for precise motion control. Designed as a unipolar 4-phase motor, it delivers smooth operation, consistent torque, and long-lasting durability.
Key Features:
✔ Compact & Efficient – 24mm diameter design ideal for space-constrained applications.
✔ Integrated Gear Ratio Gearbox – Enhances torque output for improved performance.
✔ Unipolar 4-Phase Configuration – Ensures reliable stepping and easy control.
✔ Low-Cost & High Quality – Budget-friendly without compromising reliability.
✔ Wide Application Range – Perfect for home appliances, HVAC systems, smart toilets, and IoT devices.
Common Uses:
-
Air conditioning systems (louver control, vent adjustment)
-
Smart home automation (curtain motors, robotic devices)
-
Smart toilet mechanisms (bidet controls, lid automation)
-
Office & medical equipment (printers, dispensers, small actuators)
With proven reliability and competitive pricing, this stepper motor is a top choice for manufacturers seeking high-quality motion control solutions.
We provide customization service on gear ratio, coil resistance, phase number, and connector types.
Customers can customize motor’s parameter based on specific requirement, we have 16:1 to64:1 gear ratio for option.
Customization options:
Model No.: 24BYJ48
Step angle:(1-2phase driving) 5.625°/64; (2-2 phase driving) 11.25°/step
Gear ratio: 16:1 / 37:1 / 48:1 / 64:1
Customizable items:
Voltage:5~24V; gear ratio, gear material, output shaft, motor’s cap design customizable
|
Voltage
(V)
|
Resistance
(Ω)
|
Pull-in torque
100PPS
(mN*m)
|
Detent Torque
(mN*m)
|
Unload pull-in
Frequency
(PPS)
|
| 5 |
18 |
≥98 |
≥29.4 |
≥500 |
| 12 |
60 |
≥117 |
≥29.4 |
≥500 |
| 12 |
70 |
≥68.7 |
≥29.4 |
≥500 |
| 24 |
200 |
≥98.7 |
≥29.4 |
≥500 |
| 24 |
300 |
≥58.8 |
≥29.4 |
≥500 |
Design drawing(Unit:mm)
Packaging and Shipping information:
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
