5V Reduction Stepper Motor Geared Reducer 4 Phase Stepper Motor 24mm Low Noise For Desk Fan

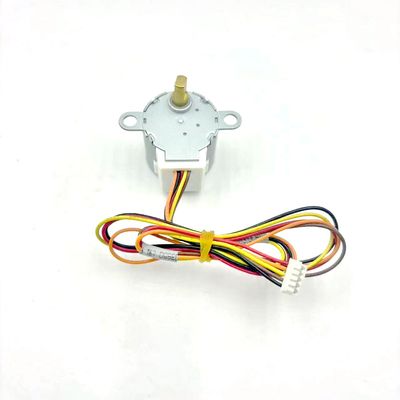

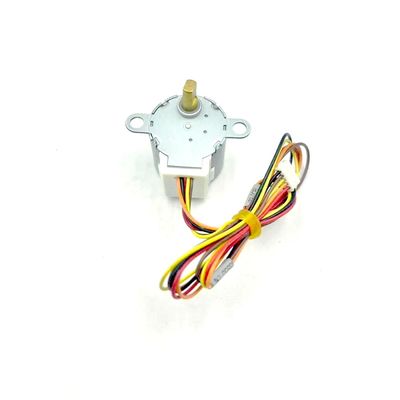

24BYJ48 5V 4 phases 5 wires geared reducer stepping motor 24mm Low noise for desk fan

This is a 24mm diameter permanent magnet stepper motor with  gear ratio gearbox.

This is an uni-polar motor with 4 phases 5wires.

We provide customization service on gear ratio, coil resistance, phase number, and connector types.

Customers can customize motor’s parameter based on specific requirement, we have 16:1 to 64:1 gear ratio for option.

Customization options:

Model No.: 24BYJ48

Step angle:(1-2phase driving) 5.625°/64; (2-2 phase driving) 11.25°/step

Gear ratio: 64:1

Customizable items:

Voltage:5V; gear ratio, gear material, output shaft, motor’s cap design customizable

Design drawing(Unit:mm)

Technical Features

Application                                                                 Highlights

HVAC/R Valve Actuation                                           Winding possibilities – Bipolar

Office Automation Printers, Copiers, Data storage   Maintenance free - motor is brushless

Medical Applications Pill dispensing Analysers        Cost effective - compact design, lower integration cost

Telecommunication Antennae positioning                Switching lines Open loop control - No encoders necessary

Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
