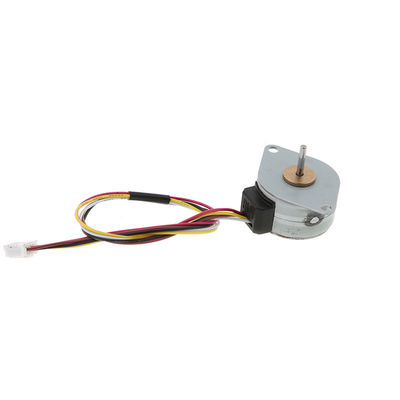

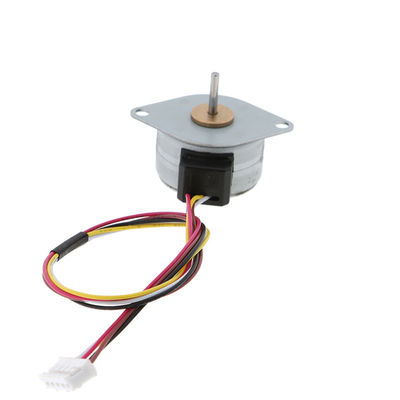

25mm 12V Stepper Motor 15mm Thickness 25BY412L With 7.5° Step For Robotics Or Medical Devices

25mm 12V Stepper Motor 15mm Thickness 25BY412L With 7.5° Step For Robotics Or Medical Devices
25mm 12V Stepper Motor 15mm Thickness 25BY412L With 7.5° Step For Robotics Or Medical Devices 25mm 12V Stepper Motor 15mm Thickness 25BY412L With 7.5° Step For Robotics Or Medical Devices

Large Image :  25mm 12V Stepper Motor 15mm Thickness 25BY412L With 7.5° Step For Robotics Or Medical Devices

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 25BY412L
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $1~3/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 100000Units/month
Contact Now Chat Now

25mm 12V Stepper Motor 15mm Thickness 25BY412L With 7.5° Step For Robotics Or Medical Devices

Description
Type: Permanent Magnet Stepper Motor Model: 25BY412L
Rated Voltage: 12V Step Angle: 7.5°
Thickness: 15mm Insulation Resistance: 100MΩ (MIN.)
Dielectric Strength: 600VAC 1mA 1S
Highlight:

Robotics 12V Stepper Motor

,

25BY412L 12V Stepper Motor

,

Medical Devices Geared Stepper Motor

25mm Stepper Motor 12V (15mm Thickness) – 25BY412L Model with 7.5° Step for Robotics & Medical Devices

This 25mm stepper motor, featuring a 7.5° step angle and a space-saving 15mm thickness, is engineered for excellence. Thanks to precision-molded parts, it delivers smoother rotation, lower positioning torque, and higher efficiency than comparable products—advantages you’ll notice in every operation.​
Eco-friendly plating on all metal components ensures both an exquisite appearance and the durability to withstand tough conditions, proving that strength and style can coexist.​
It finds its niche in precision medical gear and automatic door locks, with input versatility that shines: switch from the standard light-type to FPC cables, PCBs, or other forms with ease. We also offer complete drive system integration to streamline your setup.​
With over 10 years in micro-motor design, development, and production, our team excels at creating custom solutions that meet your specific needs down to the last detail.

Customer needs is the direction of our efforts, please feel free to contact!



Specifications

Product Name

25 mm permanent magnet stepper motor

Model

25BY412L

Rated Voltage

 12 V DC

Coil Resistance

55 Ω ± 7%/phase 25℃

No. Of phase

2 Phases

Step Angle

 7.5 degree

Pull-in frequency

700Hz

Pull frequency

800 Hz

Pull out torque

11.76mN.m(200HZ)

Holding torque

13.5mN.m

Self-positioning torque

1mN.m(REF)

inductance

22mH/phase(REF)

Excitation method

2-2phase

Insulation withstand voltage

No breakdown or flying fox

Insulation dielectric strength

Above 100MΩ DC500V

noise

No abnormal sound



Mechanical Dimension:MM

25mm 12V Stepper Motor 15mm Thickness 25BY412L With 7.5° Step For Robotics Or Medical Devices 0
