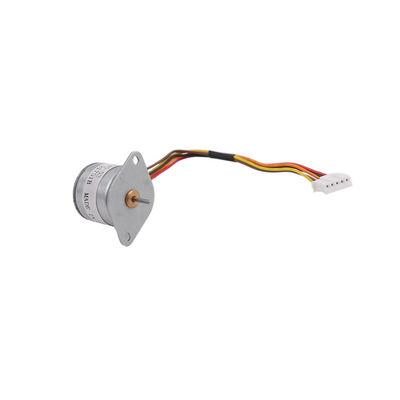

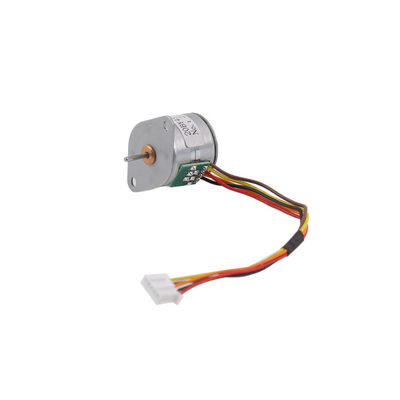

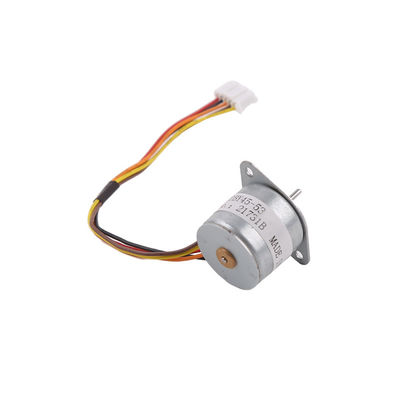

20BY45 20mm Stepper Motor 12V Model With 18° Step Angle For Stable Positioning In Printers

20BY45 20mm Stepper Motor 12V Model With 18° Step Angle For Stable Positioning In Printers
20BY45 20mm Stepper Motor 12V Model With 18° Step Angle For Stable Positioning In Printers 20BY45 20mm Stepper Motor 12V Model With 18° Step Angle For Stable Positioning In Printers 20BY45 20mm Stepper Motor 12V Model With 18° Step Angle For Stable Positioning In Printers

Large Image :  20BY45 20mm Stepper Motor 12V Model With 18° Step Angle For Stable Positioning In Printers

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 20BY45
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1-$3/unit
Packaging Details: Single item plastic box inner , outer paper box Package
Delivery Time: 15-30 work days
Payment Terms: T/T,Western Union,MoneyGram,D/P
Supply Ability: 1000000units/year
Contact Now Chat Now

20BY45 20mm Stepper Motor 12V Model With 18° Step Angle For Stable Positioning In Printers

Description
Type: Permanent Magnet Stepper Motor Step Angle: 18°
Voltage: 12V Phase: 2
Resistance: 100 Ω Insulation Resistance: 100MΩ (MIN.)
Dielectric Strength: 600VAC 1mA 1S
Highlight:

20BY45 20mm Stepper Motor

,

Stable 20mm Stepper Motor

,

20BY45 12V Stepper Motor

Reliable 20mm OD Stepper Motor 12V 20BY45 Model with 18° Step Angle for Stable Positioning in Printers & Optics



Meet the 20mm stepper motor, where every 18° step is a testament to precision. Crafted with components from high - precision molds, it outperforms peers with rock - solid rotation stability, minimal detent torque, and peak efficiency—qualities that set it apart in the micro - motor landscape.​
Its metal parts, including the casing, undergo eco - friendly plating, blending a polished look with rugged durability, making it a fit for tough environments.​
Ideal for precision medical gear and automatic door locks, it adapts effortlessly: the standard light - type input can morph into FPC cables, PCBs, or custom setups. Need a full drive system? We’ve got you covered.​
Backed by a team with a decade of micro - motor expertise, we turn your unique needs into tailored motor solutions.

Customer needs is the direction of our efforts, please feel free to contact!



Specifications



Product Name 20 mm permanent magnet stepper motor
Model 20BY45
Rated Voltage  12V DC
Coil Resistance 100 Ω ± 7%/phase 25℃
No. Of phase 2 Phases
Step Angle 18 degree
Pull-in frequency 700Hz
Pull frequency 1000 Hz
Pull out torque 2.35nN.m
Holding torque 5.29mN.m
Self-positioning torque 1.18mN.m(REF)
inductance 22mH/phase(REF)
Excitation method 2-2phase
Insulation withstand voltage No breakdown or flying fox
Insulation dielectric strength Above 100MΩ DC500V
noise No abnormal sound



Mechanical Dimension:MM



20BY45 20mm Stepper Motor 12V Model With 18° Step Angle For Stable Positioning In Printers 0
