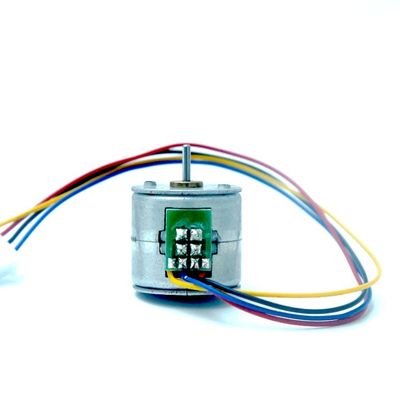

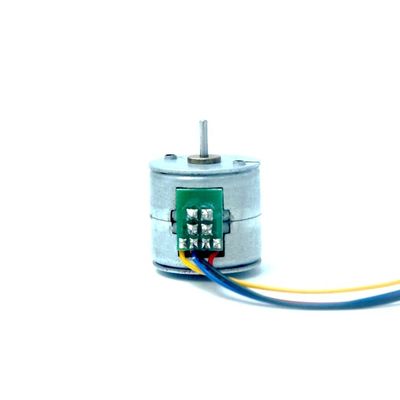

Eco Friendly Permanent Magnet Stepper Motor 20BY45 5V Stepper Motor High Precision

Eco Friendly Permanent Magnet Stepper Motor 20BY45 5V Stepper Motor High Precision
Eco Friendly Permanent Magnet Stepper Motor 20BY45 5V Stepper Motor High Precision Eco Friendly Permanent Magnet Stepper Motor 20BY45 5V Stepper Motor High Precision

Large Image :  Eco Friendly Permanent Magnet Stepper Motor 20BY45 5V Stepper Motor High Precision

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 20BY45
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1-$3/unit
Packaging Details: Single item plastic box inner , outer paper box Package
Delivery Time: 15-30 work days
Payment Terms: T/T,Western Union,MoneyGram,D/P
Supply Ability: 1000000units/year
Contact Now Chat Now

Eco Friendly Permanent Magnet Stepper Motor 20BY45 5V Stepper Motor High Precision

Description
Type: Permanent Magnet Stepper Motor Step Angle: 18°
Voltage: 5-24V Phase: 2
Insulation Resistance: 100MΩ (MIN.) Dielectric Strength: 600VAC 1mA 1S
Highlight:

Eco Friendly Permanent Magnet Stepper Motor

,

High Precision Permanent Magnet Stepper Motor

,

Eco Friendly 5V Stepper Motor

Wide Voltage 5-24V 20mm 20BY45 Permanent Magnet Stepper Motor 18° Step Angle Versatile Use

The 20BY45 isn’t just a stepper motor—it’s a precision-engineered solution for demanding applications. With a 20mm diameter and 18° step angle, every component is forged from precision molds, delivering unmatched stability, ultra - low detent torque, and industry - leading efficiency compared to generic alternatives.

Built to Endure & Impress

Motor casings and all metal parts undergo eco - friendly plating, ensuring a sleek, durable finish that thrives in harsh environments—no compromise on aesthetics or resilience.

Versatile & Customizable

Tailored for:
  • Precision medical devices (reliability in critical care)
  • Smart door locks (secure, smooth actuation)
Input options go beyond standard: The default light - type connector adapts to FPC cables, custom PCBs, or unique interfaces—we mold solutions to your design. Need a full drive system? We integrate it seamlessly.

Decades of Expertise, Yours to Leverage

Our team brings 10+ years of micro - motor R&D and manufacturing mastery. Whether you need tweaks to the 20BY45 or a ground - up custom design, we turn “special requests” into reality—fast.



Choose 20BY45 for a motor that’s as adaptable as your innovation.

Specifications

Product Name 20 mm permanent magnet stepper motor
Model 20BY45
Rated Voltage  12 V DC
Coil Resistance 100 Ω ± 7%/phase 25℃
No. Of phase 2 Phases
Step Angle 18 degree
Pull-in frequency 700Hz
Pull frequency 1000 Hz
Pull out torque 2.35nN.m
Holding torque 5.29mN.m
Self-positioning torque 1.18mN.m(REF)
inductance 22mH/phase(REF)
Excitation method 2-2phase
Insulation withstand voltage No breakdown or flying fox
Insulation dielectric strength Above 100MΩ DC500V
noise No abnormal sound

Mechanical Dimension:MM



Eco Friendly Permanent Magnet Stepper Motor 20BY45 5V Stepper Motor High Precision 0

Tag:

PM Synchronous Motor,

Micro Synchronous Motor,

synchronous servo motor
