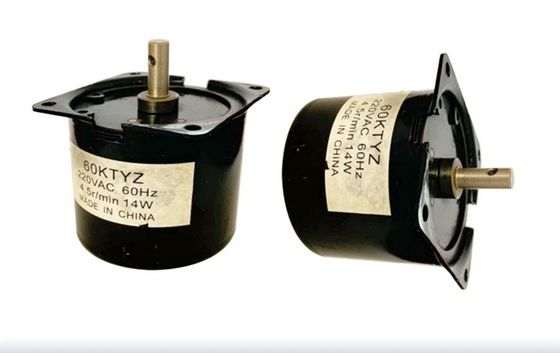

60KTYZ 220V AC Permanent Magnet Gear Motor Low Speed PM Synchronous Motor

60KTYZ 220V AC Permanent Magnet Gear Motor Low Speed PM Synchronous Motor
60KTYZ 220V AC Permanent Magnet Gear Motor Low Speed PM Synchronous Motor 60KTYZ 220V AC Permanent Magnet Gear Motor Low Speed PM Synchronous Motor

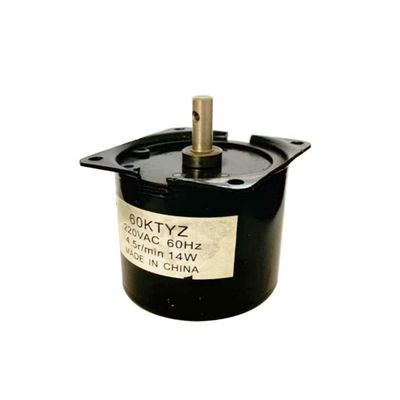

Large Image :  60KTYZ 220V AC Permanent Magnet Gear Motor Low Speed PM Synchronous Motor

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 60KTYZ
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $5~7/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000Units/month
Contact Now Chat Now

60KTYZ 220V AC Permanent Magnet Gear Motor Low Speed PM Synchronous Motor

Description
Type: Permanent Magnet Synchronous Motor Rated Voltage: 24V/110V/220V
Highlight:

60KTYZ Permanent Magnet Synchronous Motor

,

220V AC Permanent Magnet Synchronous Motor

,

Low Speed PM Synchronous Motor

Mechanical Dimension:MM



60KTYZ 220V AC Permanent Magnet Gear Motor Low Speed PM Synchronous Motor 0

Specifications

Nominal voltage V 220            120             24
Frequency HZ 50/60
Power W 14
RPM r/min 1.7/2 2.5/3 2.7/3.2 3.8/4.5  5/6 7.5/9 10/12 12/15 15/18 20/24 30/36 60/72 80/95
Torque N.cm 500 500 400 350 300 200 150 110 100 60 42 20 16
Direction of rotation two-way motion
The working voltage can be adjusted according to customer requirements (12 - 240V), and special rotational speeds can be customized as per customer needs (≤ 100r/min).
The shaft-out dimensions can be customized according to the customer's requirements.



Tag:

PM Synchronous Motor,

Micro Synchronous Motor,

synchronous servo motor
