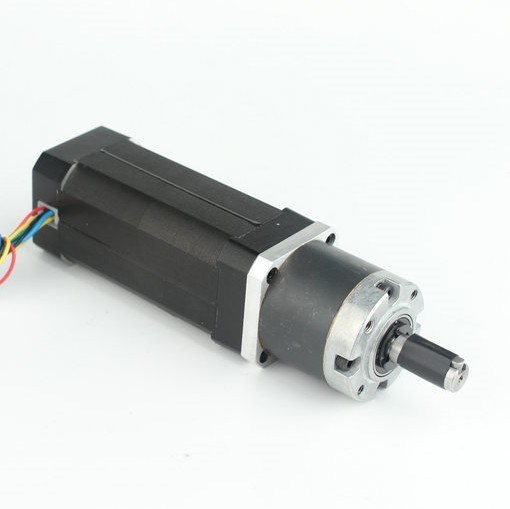

NEMA17 42mm Brushless Planetary Gear Motor 24V 5000rpm Heat Resistance

NEMA17 42mm Brushless Planetary Gear Motor 24V 5000rpm Heat Resistance
NEMA17 42mm Brushless Planetary Gear Motor 24V 5000rpm Heat Resistance

Large Image :  NEMA17 42mm Brushless Planetary Gear Motor 24V 5000rpm Heat Resistance

Product Details:
Place of Origin: China
Brand Name: WEIGU
Certification: RoHS
Model Number: 42BLDC-G
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $24~60/unit
Packaging Details: Standard export package, or can be customized
Delivery Time: 7-30 work days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000Units/month
Contact Now Chat Now

NEMA17 42mm Brushless Planetary Gear Motor 24V 5000rpm Heat Resistance

Description
Type: Geared Brushless Dc Motor Rated Voltage: 24-48V
Rated Speed: 2000rpm - 5000rpm Insulation Resistance: 100MΩ (MIN.)
Dielectric Strength: 600VAC 1mA 1S
Highlight:

42mm Brushless Planetary Gear Motor

,

NEMA17 Brushless Planetary Gear Motor

,

5000rpm planetary gear motor 24v

General Technical parameters

projects

parameters

Product Name

Brushless DC Motor

Winding Type

Star

Shaft diameter range

8mm (max.)

Hall Effect Angle

120°

Insulation Class

B

IP Level

IP40

Insulation Resistance

100MΩ Min.500VC DC

Dielectric Strength

600VAC 2mA 1s

Ambient Temperature

-20℃~+50℃



Electrical Specification

Model

42BLDC

Number Of Phases

Phase

3

Number Of Poles

Poles

8

Rated Voltage

VDC

24

24

24

48

Rated Speed

Rpm

2000

2000

3000

4000

Rated Current

A

1.7

2.7

6

6.8

Rated Torque

N.m

0.15

0.25

0.35

0.35

Rated Power

W

30

50

110

150

Peak Torque

N.m

0.4

0.7

1

1

Torque Constant

N.m/A

0.076

0.089

0.06

0.09

Back EMF constant

V/kRPM

7.9

9.35

6.1

9.4

Body Length

mm

52.5

62.5

72.5

72.5

Weight

Kg

0.3

0.4

0.5

0.5



 Gearbox Electrical Specification:



 Reduction ratio 3.7 5.2 14 19 27 51 71 100 139 182 219 254 306 354 427 495 596
 umber of geartrains 1 2 3 4
 Transmission efficiency 90% 81% 73% 66%
 Rated tolerance torque 1 N.m 4 N.m 8 N.m 10 N.m
 Max momentary tolerance torque 3 N.m 12 N.m 25 N.m 30 N.m
 Max radial load(12mm form flange) ≤80N
 Max shaft axial load ≤30N
 L2 length(mm) 31.5 42.1 52.5 62.9



Dimensions: (Unit=mm)

NEMA17 42mm Brushless Planetary Gear Motor 24V 5000rpm Heat Resistance 0
